Adjustable Plastic Coated Tubing Ring

Name: Adjustable Plastic Coated Tubing Ring
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-bfb074
Price: 12.99 USD
Availability: OutOfStock

SKU:PIP-bfb074

Securely hang copper tubing with our durable Adjustable Plastic Coated Tubing Ring, designed to prevent galvanic action. Meets institutional procurement standards.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

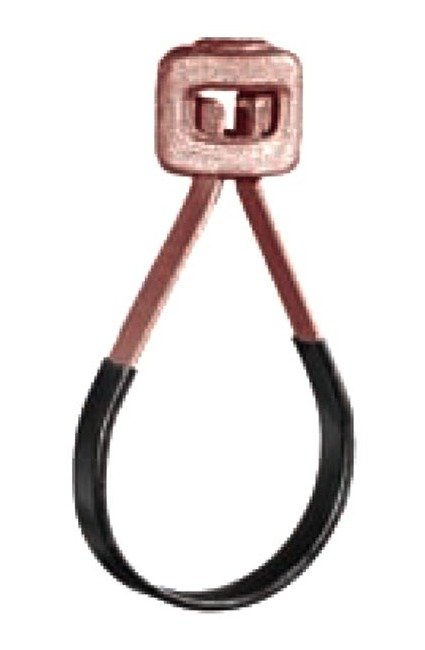

The Adjustable Plastic Coated Tubing Ring is a versatile solution designed for securely hanging copper tubing ranging from 1/2" to 4". Crafted from carbon steel with a malleable iron adjusting nut, this hanger ensures durability and corrosion resistance. The copper plated finish with plastic coating eliminates galvanic action, providing enhanced protection and longevity. With a maximum load capacity of 400 lbs and precise dimensions for a snug fit, this tubing ring offers reliability and ease of installation. Specify your nominal tube size and enjoy a dependable hanger that meets stringent institutional procurement standards.

Product Specifications

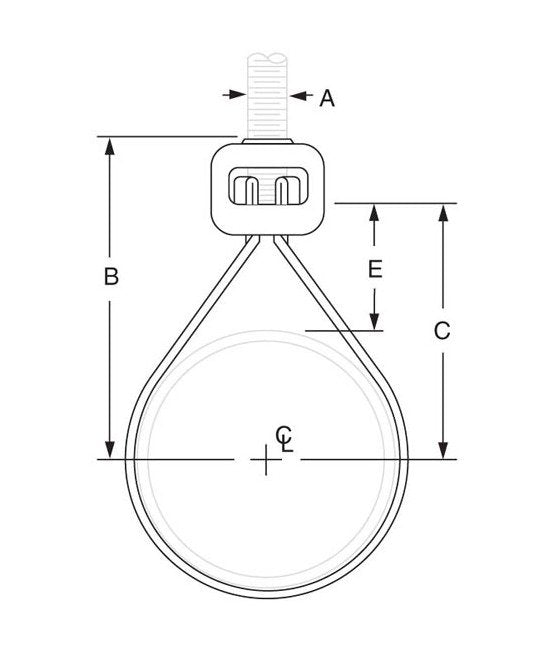

Specifications Adjustment E

1 7/16 inches

Specifications Dimension B

2 5/8 inches

Specifications Dimension C

1 7/8 inches

Specifications Finish

Copper plated with the band plastic coated

Specifications Material Adjusting Nut

Malleable Iron

Specifications Material Ring

Carbon Steel

Specifications Maximum Load

400 lbs

Specifications Rod Size A

3/8 inches

Specifications Tube Size

3/4 inches

Specifications Weight

0.15 lbs

Adjustable Plastic Coated Tubing Ring
