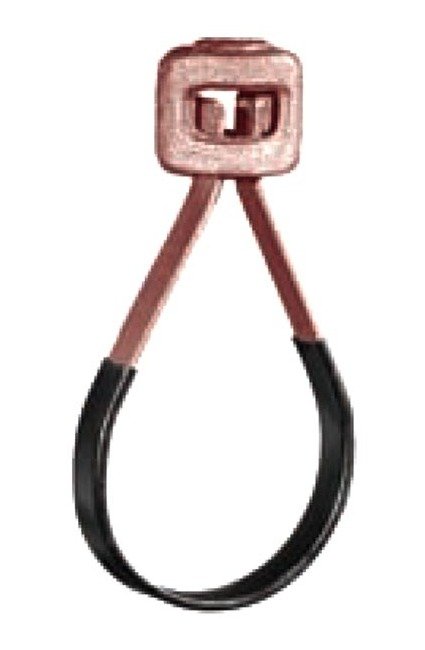

Adjustable Plastic Coated Tubing Ring

Name: Adjustable Plastic Coated Tubing Ring
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-c6b4fc
Price: 17.99 USD
Availability: OutOfStock

SKU:PIP-c6b4fc

Secure, durable, and adjustable tubing ring with copper-plated finish for up to 400 lbs load, free from galvanic corrosion.

$17.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your piping system with our Adjustable Plastic Coated Tubing Ring designed for secure support and durability. Crafted from carbon steel and malleable iron, this copper-plated hanger with a plastic-coated band ensures exceptional load-bearing capacity of up to 400 lbs. Its adjustable design eliminates galvanic corrosion risks, offering precise fit and stability. Specify your nominal tube size effortlessly with the figure number and name for easy installation in any industrial or plumbing application.

Product Specifications

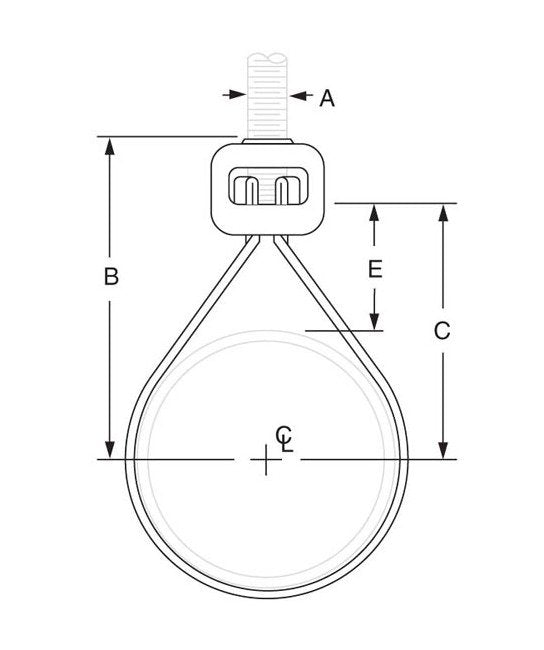

Specifications Adjustment E

1 9/16 inches

Specifications Dimension B

3 inches

Specifications Dimension C

2 1/4 inches

Specifications Finish

Copper plated with the band plastic coated

Specifications Material Adjusting Nut

Malleable Iron

Specifications Material Ring

Carbon Steel

Specifications Maximum Load

400 lbs

Specifications Rod Size A

3/8 inches

Specifications Tube Size

1 1/4 inches

Specifications Weight

0.16 lbs

Adjustable Plastic Coated Tubing Ring
