Adjustable Plastic Coated Tubing Ring

Name: Adjustable Plastic Coated Tubing Ring
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-7dd7c8
Price: 24.99 USD
Availability: OutOfStock

SKU:PIP-7dd7c8

Securely and efficiently support copper tubing with our Adjustable Plastic Coated Tubing Ring. Adjustable design for versatile applications.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

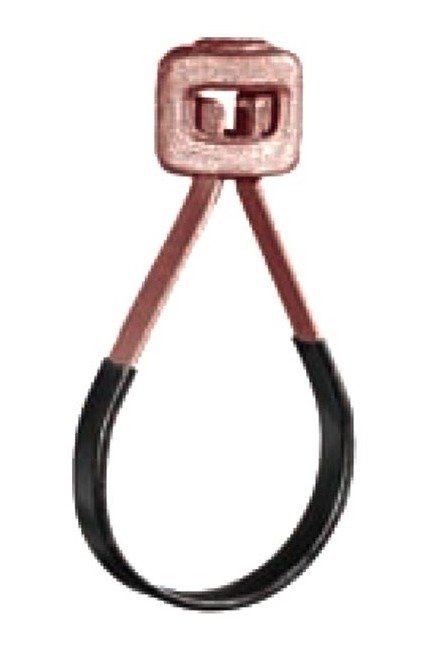

The Adjustable Plastic Coated Tubing Ring is a reliable solution for securing copper tubing in various applications. Made from high-quality carbon steel and malleable iron, it features a copper plated finish with a plastic coating to prevent galvanic action. This hanger ensures secure support for tubing sizes ranging from 1/2" to 4", with a maximum load capacity of 400 lbs. The adjustable design allows for easy customization to fit different tube sizes, making installation quick and efficient. Designed to meet stringent industry standards, this tubing ring offers durability, reliability, and corrosion resistance for long-lasting performance.

Product Specifications

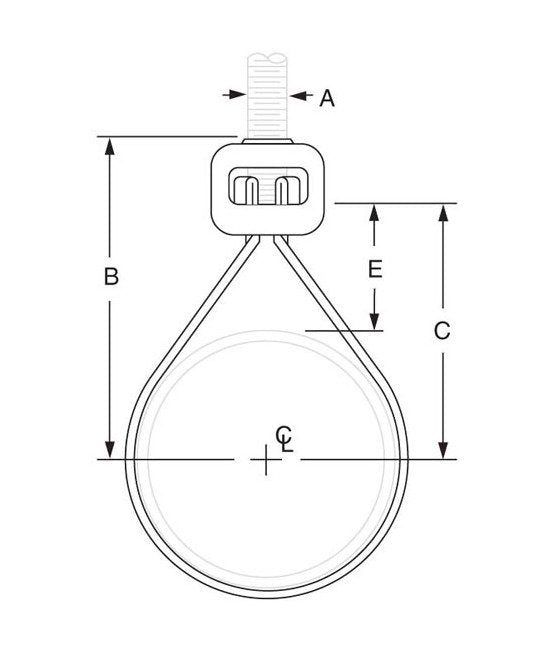

Specifications Adjustment E

1 7/16 inches

Specifications Dimension B

2 1/2 inches

Specifications Dimension C

1 3/4 inches

Specifications Finish

Copper plated with the band plastic coated

Specifications Material Adjusting Nut

Malleable Iron

Specifications Material Ring

Carbon Steel

Specifications Maximum Load

400 lbs

Specifications Rod Size A

3/8 inches

Specifications Tube Size

1/2 inches

Specifications Weight

0.14 lbs

Adjustable Plastic Coated Tubing Ring
