Adjustable Plastic Coated Tubing Ring - 2 Inch

Name: Adjustable Plastic Coated Tubing Ring - 2 Inch
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-8aa7cc
Price: 12.99 USD
Availability: OutOfStock

SKU:PIP-8aa7cc

Securely support copper tubing with our Adjustable Plastic Coated Tubing Ring. Prevent galvanic action and ensure durability.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

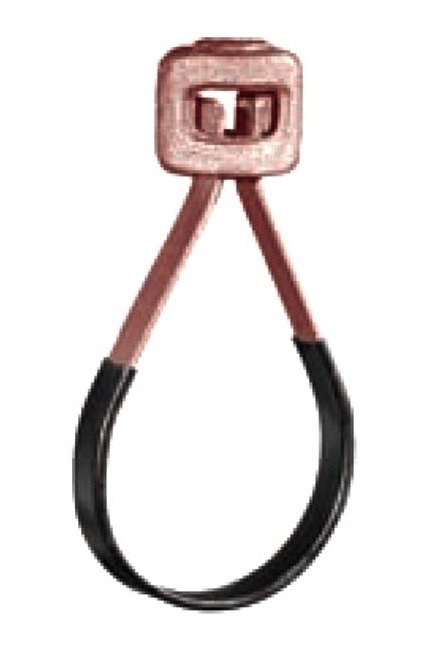

The Adjustable Plastic Coated Tubing Ring is designed for secure support and prevention of galvanic action between hanger and copper tubing. Made with carbon steel ring and malleable iron adjusting nut, it boasts a Copper plated finish with plastic coating for enhanced durability. With a maximum load capacity of 400 lbs, this versatile hanger offers easy adjustment and reliable performance. Specify nominal tube size and figure number for precise installation.

Product Specifications

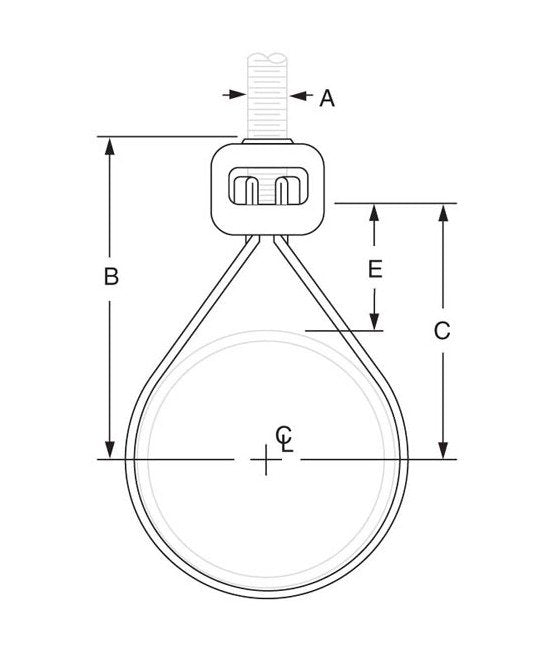

Specifications Adjustment E

1 1/2 inches

Specifications Dimension B

3 5/16 inches

Specifications Dimension C

2 9/16 inches

Specifications Finish

Copper plated with the band plastic coated

Specifications Material Adjusting Nut

Malleable Iron

Specifications Material Ring

Carbon Steel

Specifications Maximum Load

400 lbs

Specifications Rod Size A

3/8 inches

Specifications Tube Size

2 inches

Specifications Weight

0.17 lbs

Adjustable Plastic Coated Tubing Ring - 2 Inch
