Adjustable Plastic Coated Tubing Ring - Copper Finish

Name: Adjustable Plastic Coated Tubing Ring - Copper Finish
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-9c5903
Price: 24.99 USD
Availability: OutOfStock

SKU:PIP-9c5903

Securely support copper tubing sizes 1/2" to 4" with our durable and corrosion-resistant Adjustable Tubing Ring.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

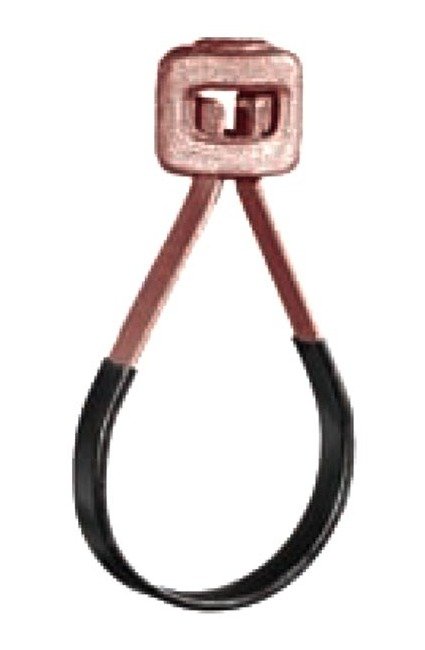

The Adjustable Plastic Coated Tubing Ring is designed to securely support copper tubing sizes ranging from 1/2" to 4". Crafted from durable carbon steel with a malleable iron adjusting nut, this hanger features a copper plated finish with plastic coating to prevent galvanic action. With a maximum load capacity of 650 lbs, it ensures reliable support for various applications. Specify nominal tube size and figure number for easy ordering.

Product Specifications

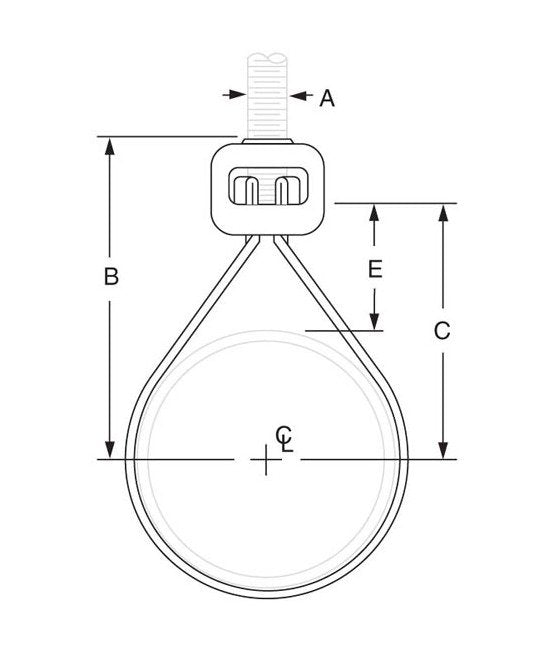

Specifications Adjustment E

2 1/8 inches

Specifications Dimension B

5 1/16 inches

Specifications Dimension C

4 3/16 inches

Specifications Finish

Copper plated with the band plastic coated

Specifications Material Adjusting Nut

Malleable Iron

Specifications Material Ring

Carbon Steel

Specifications Maximum Load

650 lbs

Specifications Rod Size A

1/2 inches

Specifications Tube Size

4 inches

Specifications Weight

0.41 lbs

Adjustable Plastic Coated Tubing Ring - Copper Finish
