Adjustable Plastic Coated Tubing Ring - Copper Finish

Name: Adjustable Plastic Coated Tubing Ring - Copper Finish
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-aa00a4
Price: 15.99 USD
Availability: OutOfStock

SKU:PIP-aa00a4

Secure and durable Adjustable Tubing Ring in Copper Finish for 1/2" to 4" copper tubes. Prevents galvanic action with plastic coating.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

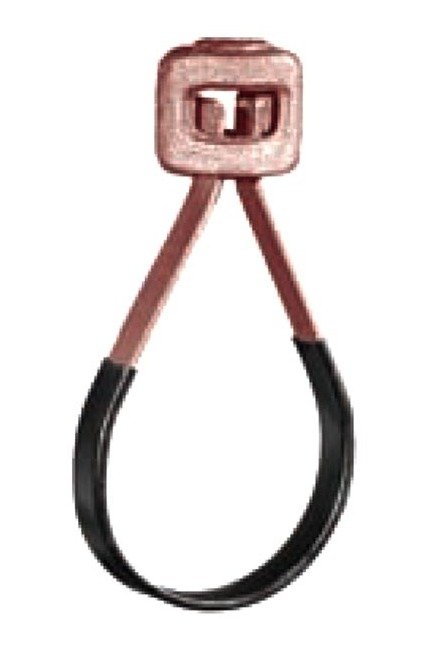

The Adjustable Plastic Coated Tubing Ring in Copper Finish is expertly designed for securing copper tubing. This versatile hanger features a carbon steel ring and malleable iron adjusting nut, ensuring robust support. The plastic-coated copper finish prevents galvanic action, enhancing durability. With a size range from 1/2" to 4" and a maximum load capacity of 400 lbs, this tubing ring offers secure and reliable installation for various applications. Specify nominal tube size and part number for easy ordering.

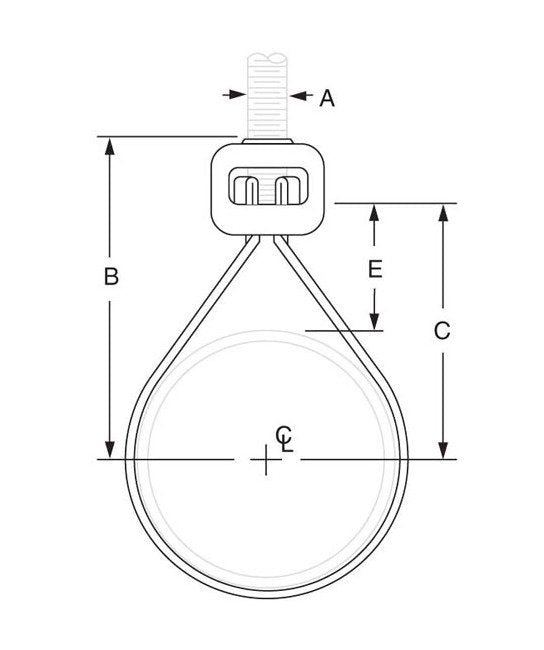

Product Specifications

Specifications Adjustment E

1 7/16 inches

Specifications Dimension B

2 3/4 inches

Specifications Dimension C

2 inches

Specifications Finish

Copper plated with the band plastic coated

Specifications Material Adjusting Nut

Malleable Iron

Specifications Material Ring

Carbon Steel

Specifications Maximum Load

400 lbs

Specifications Rod Size A

3/8 inches

Specifications Tube Size

1 inches

Specifications Weight

0.15 lbs

Adjustable Plastic Coated Tubing Ring - Copper Finish
