Adjustable Plastic Coated Tubing Ring - Copper Plated

Name: Adjustable Plastic Coated Tubing Ring - Copper Plated
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-a8ee69
Price: 14.99 USD
Availability: OutOfStock

SKU:PIP-a8ee69

Secure, durable, and corrosion-resistant hanger for 1/2" to 4" copper tubing

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

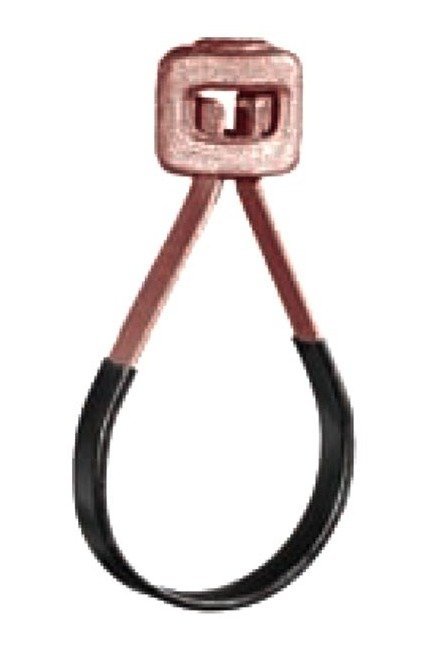

The Adjustable Tubing Ring (Plastic Coated) offers a comprehensive solution for securing copper tubing sizes ranging from 1/2" to 4". Crafted with a carbon steel ring and malleable iron adjusting nut, this hanger is copper plated with a protective plastic coating to prevent galvanic corrosion between the hanger and tubing. With a maximum load capacity of 400 lbs, precise dimensions, and easy adjustment capabilities, this product ensures secure and durable support for copper tubing installations. Specify the nominal tube size and figure number for seamless ordering.

Product Specifications

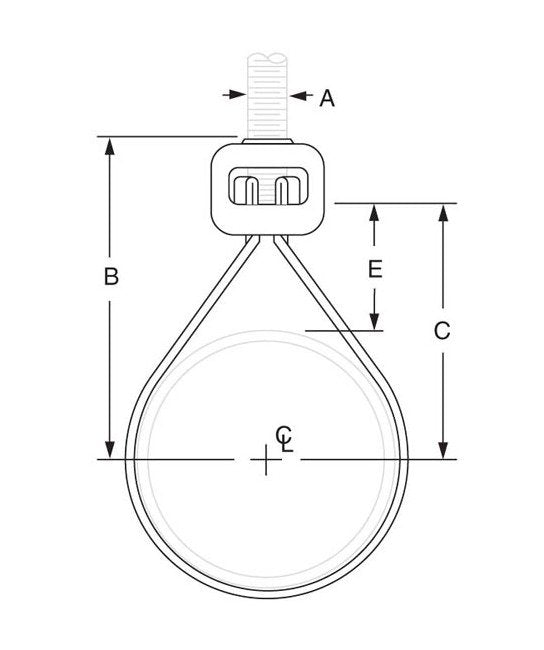

Specifications Adjustment E

1 9/16 inches

Specifications Dimension B

3 1/8 inches

Specifications Dimension C

2 3/8 inches

Specifications Finish

Copper plated with the band plastic coated

Specifications Material Adjusting Nut

Malleable Iron

Specifications Material Ring

Carbon Steel

Specifications Maximum Load

400 lbs

Specifications Rod Size A

3/8 inches

Specifications Tube Size

1 1/2 inches

Specifications Weight

0.17 lbs

Adjustable Plastic Coated Tubing Ring - Copper Plated
