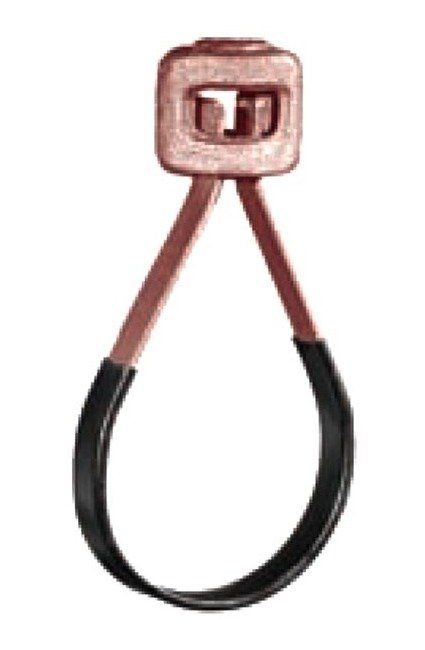

Adjustable Plastic Coated Tubing Ring - Copper Plated

Name: Adjustable Plastic Coated Tubing Ring - Copper Plated
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-e0a87e
Price: 25.99 USD
Availability: OutOfStock

SKU:PIP-e0a87e

Durable Adjustable Tubing Ring for copper tubing sizes 1/2" to 4". Plastic coated to prevent galvanic action. Ideal for heavy loads.

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Adjustable Plastic Coated Tubing Ring in copper finish offers a versatile solution for supporting copper tubing ranging from 1/2" to 4" diameters. Crafted with a carbon steel ring and malleable iron adjusting nut, this hanger ensures superior durability and resistance to corrosion. The plastic coating eliminates the risk of galvanic action, ensuring secure support without compromising the tubing integrity. With a maximum load capacity of 650 lbs, precise size dimensions, and easy adjustability, this tubing ring meets the stringent requirements of institutional and government projects.

Product Specifications

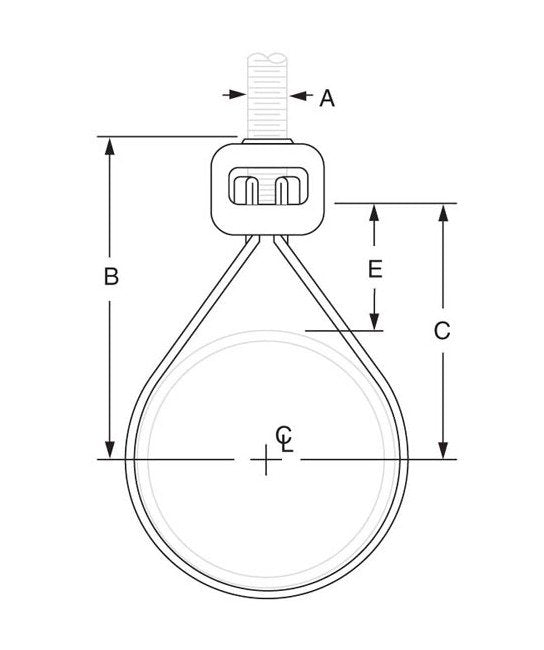

Specifications Adjustment E

1 13/16 inches

Specifications Dimension B

4 1/4 inches

Specifications Dimension C

3 3/8 inches

Specifications Finish

Copper plated with the band plastic coated

Specifications Material Adjusting Nut

Malleable Iron

Specifications Material Ring

Carbon Steel

Specifications Maximum Load

650 lbs

Specifications Rod Size A

1/2 inches

Specifications Tube Size

3 inches

Specifications Weight

0.36 lbs

Adjustable Plastic Coated Tubing Ring - Copper Plated
