Adjustable Pressure Dew Point Control Membrane Dryers
Adjustable Pressure Dew Point Control Membrane Dryers
SKU:CLE-ff852d
Experience top-tier air treatment with DRYPOINT® MDi65 ecoIntelligent Series Membrane Dryers. Reliable, efficient, and maintenance-free.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Adjustable Pressure Dew Point Control Membrane Dryers
$1,499.99
Quantity: 1
Claim Your Seller Account
Adjustable Pressure Dew Point Control Membrane Dryers
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DRYPOINT® MDi65 ecoIntelligent Series Membrane Dryers deliver exceptional air treatment with adjustable pressure dew point control. Featuring integrated pre-filtration of 0.01 μm and operational specifications including a flow rate of 64.13 scfm, these dryers ensure top-notch performance. With a maximum operating temperature of 122 °F and maintenance intervals of 8,000 hours, they offer reliability and efficiency. The innovative Twist 45 Technology guarantees consistent dew point suppression, energy savings, and trouble-free operation, making them ideal for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Connection Size Npt
1 in

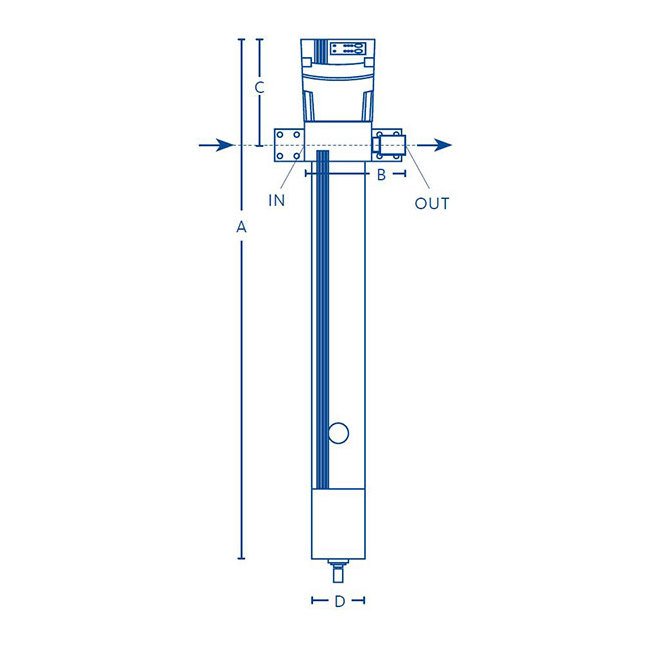

Specifications Dimension A
35.87 in
Specifications Dimension B
9.84 in
Specifications Dimension C
6.46 in
Specifications Dimension D
4.92 in
Specifications Flow Rate
64.13 scfm
Specifications Inlet Capacity For Purge Air 10
64.13 scfm
Specifications Inlet Pdp Pressure Dew Point
+40 to +100 ºF
Specifications Integrated Pre Filtration
0.01 µm
Specifications Maximum Standard Operating Pressure
145 psig
Specifications Maximum Standard Operating Temperature
122 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 10
+22 to +65 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 17
0 to +35 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 25
-30 to -4 ºF
Specifications Outlet Pdp Pressure Dew Point For Purge Air 28
-40 to -20 ºF
Specifications Purge Air
10 % | 17 % | 25 % | 28 %
Specifications Warranty
5 years
Specifications Weight
24.03 lb
Standard Features And Benefits 0
Twist 45 Technology:Highest possible performance from a membrane with 45º wound fiber.Maximum Reliability:Provides consistent dew point suppression and lasting performance even in the most demanding environments.Highest Performance:Saves energy with zero electricity required and achieves dew point in a minimal amount of time with minimum purge.Maintenance Free:With no moving parts or electrical components trouble-free operation is achieved even in mobile applications.Perfect Design:The small footprint combined with the variety of configurations possible make an ideal choice for all types of applications.
