Adjustable Sound Level Air Amplifier
Adjustable Sound Level Air Amplifier
SKU:ADJ-b56ea7
Regulate air flow from breeze to blast with the Adjustable Sound Level Air Amplifier. Ideal for various applications, compact, maintenance-free, and compliant with OSHA standards.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Adjustable Sound Level Air Amplifier
$249.99
Quantity: 1
Claim Your Seller Account
Adjustable Sound Level Air Amplifier
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

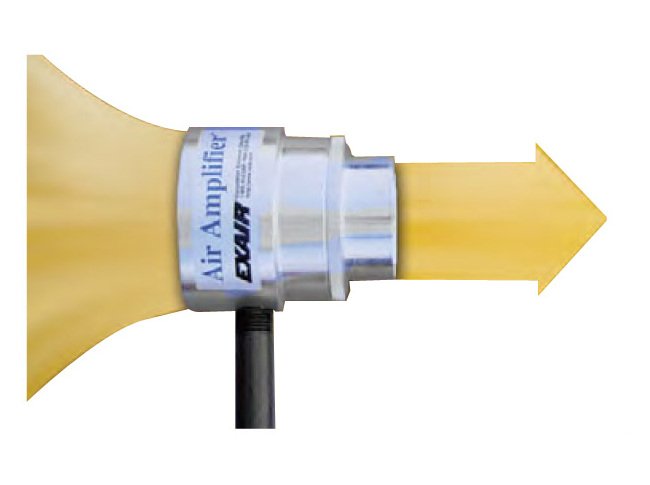

Enhance air flow with precision using the 6031 - 81 dBA Sound Level Adjustable Air Amplifier. Its infinitely adjustable air gap allows regulation from a gentle breeze to a powerful blast. Available in stainless steel for food service, high temperatures up to 400°F, and corrosive applications. With features like medium efficiency, infinite flow adjustment, and compact design, this air amplifier beats fans with its lightweight, maintenance-free operation. Meet OSHA pressure and noise requirements while enjoying quiet operation and high flow amplification.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Advantages
Compared to Fans :Compact, lightweight, portableNo electricityNo moving parts – no maintenanceEnds are easily ductedInstant on/offVariable force and flowNo RF interferenceCompared to Venturis and Ejectors:More air with lower compressed air consumptionHigher flow amplificationNo internal obstructionsMeets OSHA pressure and noise requirementsQuiet
Specifications Air Consumption
12.9 SCFM | 365 SLPM
Specifications Air Volume At 6 In 152 Mm
618 SCFM | 17500 SLPM
Specifications Air Volume At Outlet
206 SCFM | 5833 SLPM
Specifications Amplification
16 Ratio
Specifications Applications
Clean Machined Parts | Cool Hot Parts | Distribute Heat in Molds/Ovens | Dry Wet Parts | Dust Collection | Exhaust Tank Fumes | Vent Welding Smoke | Ventilate Confined Areas
Specifications Corrosive Applications
Yes
Specifications Dimension B
1.25 in | 32 mm
Specifications Dimension E
1 in | 25 mm
Specifications Dimension F
0.75 in | 19 mm
Specifications Dimension G
1.38 in | 35 mm
Specifications Dimension H
1.75 in | 44 mm
Specifications Efficiency
Medium
Specifications Flow Adjustment
Infinite (No Shims)
Specifications Inside Diameter
0.84 in | 21 mm
Specifications Material
Stainless Steel
Specifications Mounting Flange
No
Specifications Note
Tested with .002" (0.05 mm) gap.
Specifications Outlet Diameter
1-1/4 in | 32 mm
Specifications Outside Diameter
2 in | 51 mm
Specifications Overall Length
2.88 in | 73 mm
Specifications Overall Width
2 in | 51 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level
81 dBA
Specifications Temperature Rating
400 ºF | 204 ºC
Specifications Thread Size
1/4 in
Specifications Thread Type
NPT
