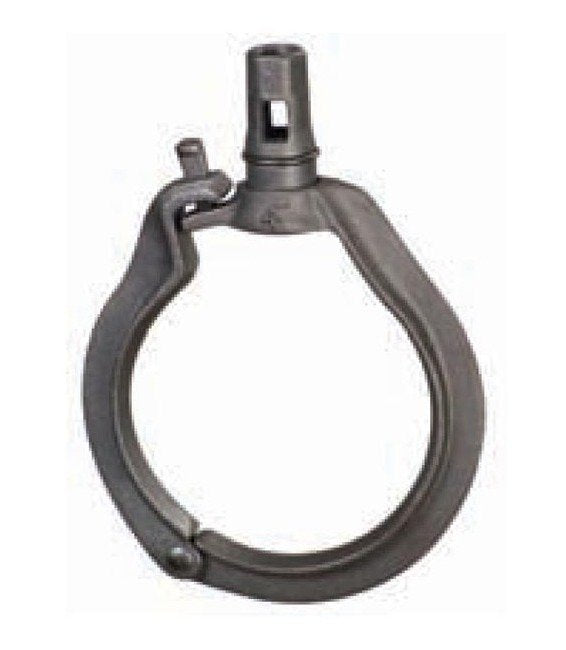

Adjustable Split Ring Swivel Hanger
Adjustable Split Ring Swivel Hanger
SKU:PIP-f675ce
Adjustable Split Ring Swivel Hanger: Securely suspend pipe lines with ease. Compliant with top federal standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Adjustable Split Ring Swivel Hanger
$29.99
Quantity: 1
Claim Your Seller Account
Adjustable Split Ring Swivel Hanger
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Adjustable Split Ring Swivel Hanger offers superior support for non-insulated stationary pipe lines. Made from durable malleable iron and carbon steel, this hanger can withstand temperatures up to 450°F. It complies with Federal Specification A-A-1192A (Type 6), WW-H-171-E (Type 6), and MSS-SP-69 (Type 6) standards. With labor-saving features, off-center hinge design, and a self-locking mechanism, it ensures secure pipe suspension and prevents loosening due to vibrations. The adjustable design and wire retaining ring make installation a breeze.

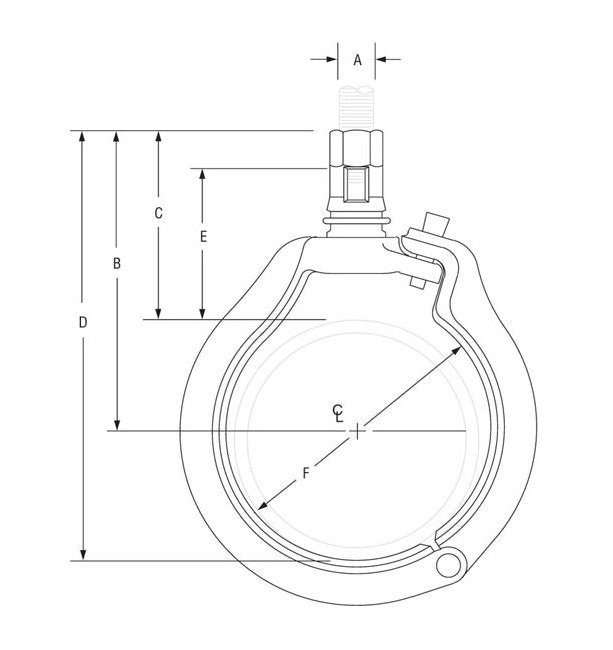

Product Specifications
Specifications Dimension B
3 15/16 inches
Specifications Dimension C
2 1/2 inches
Specifications Dimension D
5 3/8 inches
Specifications Dimension E
1 7/8 inches
Specifications Finish
Galvanized | Plain
Specifications Inside Diameter Of Ring F
3 inches
Specifications Material
Carbon Steel | Malleable Iron
Specifications Maximum Load
500 lbs
Specifications Maximum Temperature
450 °F
Specifications Pipe Size
2 1/2 inches
Specifications Rod Size A
1/2 inches
Specifications Weight
0.58 lbs
