Adjustable Split Ring Swivel Hanger
Adjustable Split Ring Swivel Hanger
SKU:PIP-ba243f
Securely suspend stationary pipe lines with our Adjustable Split Ring Swivel Hanger. Compliant with Federal Specification standards, featuring labor-saving installation and vibration-resistant design.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Adjustable Split Ring Swivel Hanger
$15.99
Quantity: 1
Claim Your Seller Account
Adjustable Split Ring Swivel Hanger
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

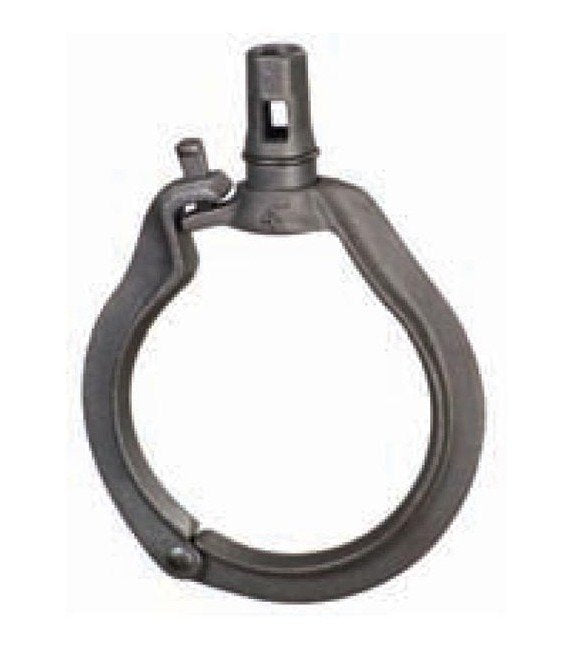

The Adjustable Split Ring Swivel Hanger is designed for suspending non-insulated stationary pipe lines in a reliable and versatile manner. Crafted from malleable iron and carbon steel with options for plain or galvanized finishes, this hanger meets stringent Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69 standards. Features include labor-saving installation, off-center hinge for easy pipe seating, and a self-locking mechanism that prevents loosening due to vibration. With a maximum load capacity of 300 lbs and a maximum temperature threshold of 450°F, this hanger ensures secure pipe support while maintaining proper pitch even in demanding environments.

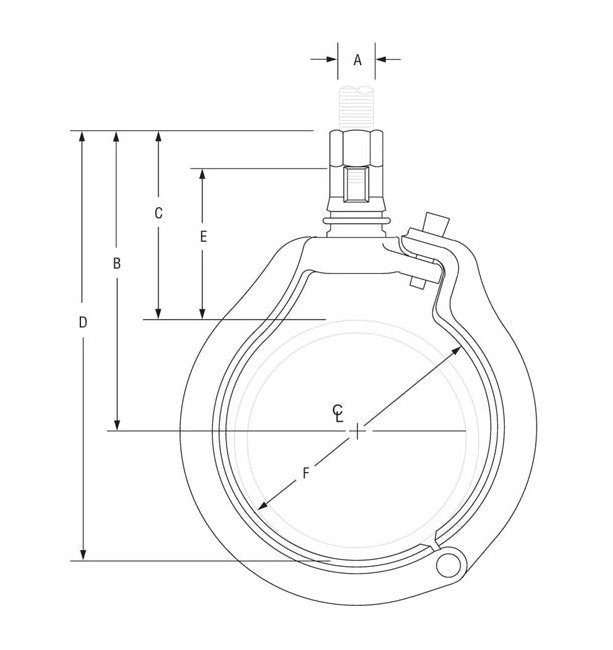

Product Specifications
Specifications Dimension B
2 7/8 inches
Specifications Dimension C
2 3/8 inches
Specifications Dimension D
3 7/16 inches
Specifications Dimension E
1 15/16 inches
Specifications Finish
Galvanized | Plain
Specifications Inside Diameter Of Ring F
1 3/16 inches
Specifications Material
Carbon Steel | Malleable Iron
Specifications Maximum Load
300 lbs
Specifications Maximum Temperature
450 °F
Specifications Pipe Size
3/4 inches
Specifications Rod Size A
3/8 inches
Specifications Weight
0.31 lbs
