Adjustable Split Ring Swivel Pipe Hanger
Adjustable Split Ring Swivel Pipe Hanger
SKU:PIP-47f779
Versatile pipe hanger with labor-saving features, self-locking swivel ring, and high load capacity. Meets Federal specifications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Adjustable Split Ring Swivel Pipe Hanger
$29.99
Quantity: 1
Claim Your Seller Account
Adjustable Split Ring Swivel Pipe Hanger
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

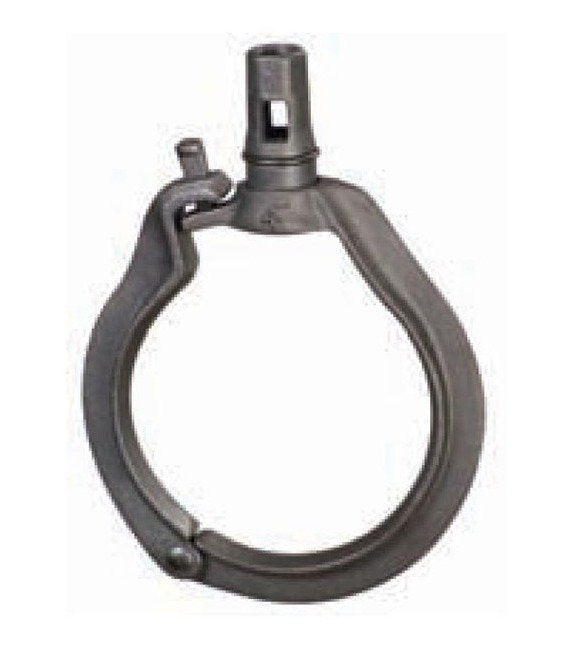

The Adjustable Split Ring Swivel Pipe Hanger is a versatile solution for suspending non-insulated stationary pipe lines. Made of malleable iron and carbon steel, this hanger is available in plain or galvanized finish and can withstand temperatures up to 450°F. Featuring labor-saving installation, an off-center hinge for easy pipe seating, and a self-locking swivel ring to prevent loosening due to vibration, it ensures proper pipe pitch. With a maximum load capacity of 500 lbs, this hanger meets Federal Specification A-A-1192A (Type 6), WW-H-171-E (Type 6), and MSS-SP-69 (Type 6) standards.
Product Specifications

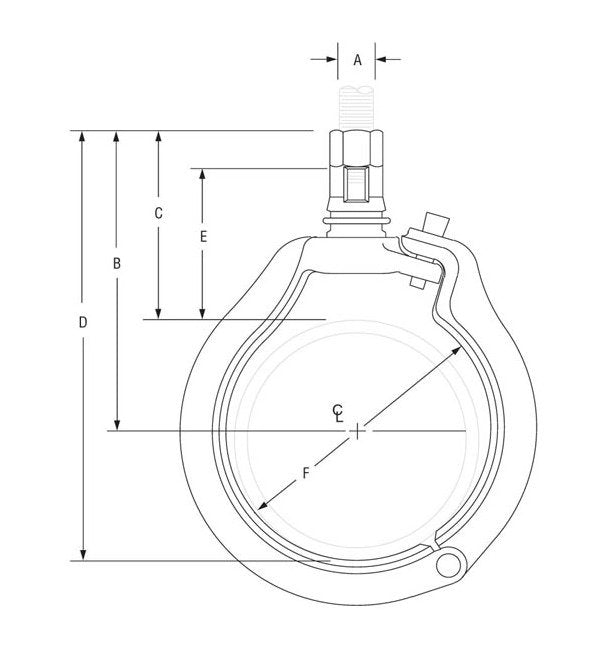

Specifications Dimension B
4 3/8 inches
Specifications Dimension C
2 5/8 inches
Specifications Dimension D
6 1/8 inches
Specifications Dimension E
2.00 inches
Specifications Finish
Galvanized | Plain
Specifications Inside Diameter Of Ring F
3 3/4 inches
Specifications Material
Carbon Steel | Malleable Iron
Specifications Maximum Load
500 lbs
Specifications Maximum Temperature
450 °F
Specifications Pipe Size
3 inches
Specifications Rod Size A
1/2 inches
Specifications Weight
1.00 lbs
