Adjustable Split Ring Swivel Pipe Hanger, 1 1/4 inch Pipe Size
Adjustable Split Ring Swivel Pipe Hanger, 1 1/4 inch Pipe Size
SKU:PIP-e4172f
Versatile Adjustable Split Ring Swivel Pipe Hanger, durable construction, vibration-resistant, meets Federal Specifications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Adjustable Split Ring Swivel Pipe Hanger, 1 1/4 inch Pipe Size
$24.99
Quantity: 1
Claim Your Seller Account
Adjustable Split Ring Swivel Pipe Hanger, 1 1/4 inch Pipe Size
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

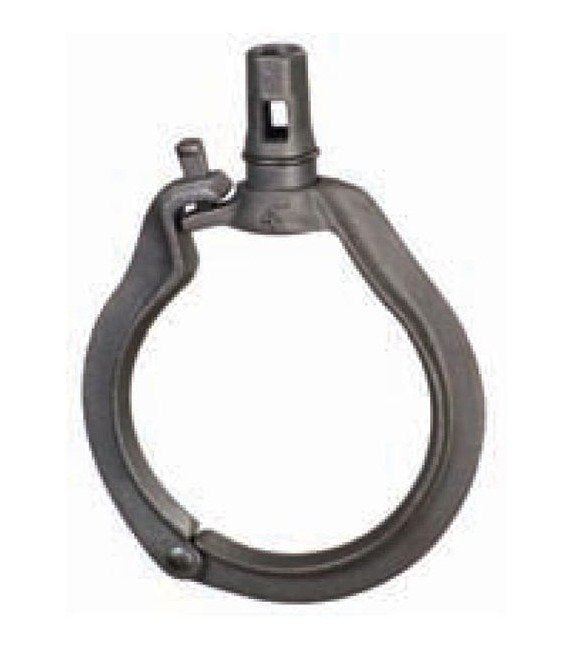

The Adjustable Split Ring Swivel Pipe Hanger is a versatile solution for suspending non-insulated stationary pipe lines efficiently. Constructed from durable carbon steel or malleable iron with a galvanized or plain finish, this hanger is designed to withstand temperatures up to 450°F. It features an off-center hinge for easy installation, a self-locking swivel ring for vibration resistance, and a wire retaining ring for secure fit. Compliant with Federal Specification A-A-1192A (Type 6), WW-H-171-E (Type 6), and MSS-SP-69 (Type 6), this hanger ensures reliable performance in various applications.
Product Specifications

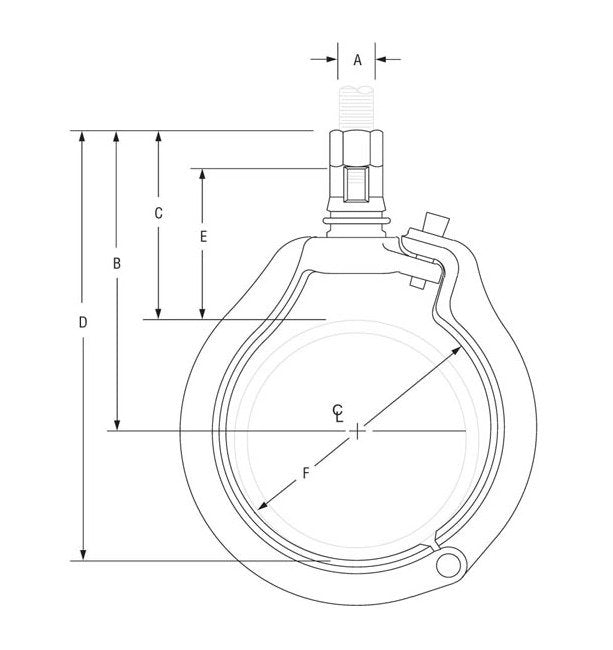

Specifications Dimension B
3.00 inches
Specifications Dimension C
2 3/16 inches
Specifications Dimension D
3 7/8 inches
Specifications Dimension E
1 11/16 inches
Specifications Finish
Galvanized | Plain
Specifications Inside Diameter Of Ring F
1 13/16 inches
Specifications Material
Carbon Steel | Malleable Iron
Specifications Maximum Load
300 lbs
Specifications Maximum Temperature
450 °F
Specifications Pipe Size
1 1/4 inches
Specifications Rod Size A
3/8 inches
Specifications Weight
0.34 lbs
