Adjustable Split Swivel Ring
Adjustable Split Swivel Ring
SKU:PIP-ae0960
Adjustable Split Swivel Ring for secure and easy pipe suspension. Complies with Federal standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Adjustable Split Swivel Ring
$29.99
Quantity: 1
Claim Your Seller Account
Adjustable Split Swivel Ring
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

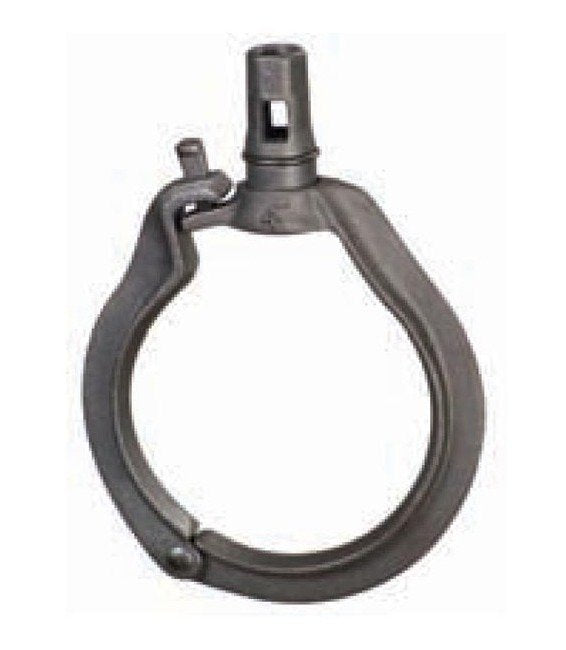

The Adjustable Split Swivel Ring offers a versatile solution for the suspension of non-insulated stationary pipe lines. Made from durable Carbon Steel and Malleable Iron with a Galvanized or Plain finish, this ring is designed for reliability in demanding environments. Key features include labor-saving installation, off-center hinge for easy pipe seating, and a self-locking mechanism that prevents loosening due to vibrations, ensuring the correct pipe pitch is maintained. This product complies with Federal Specification A-A-1192A (Type 6), WW-H-171-E (Type 6), and MSS-SP-69 (Type 6).

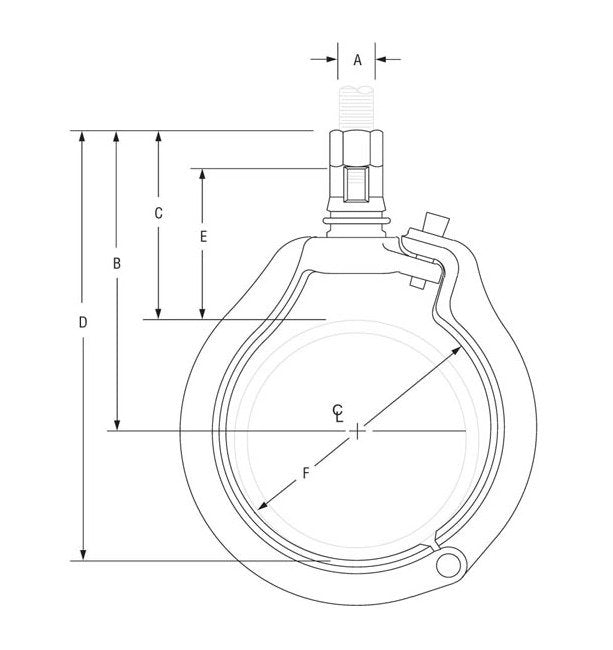

Product Specifications
Specifications Dimension B
3 1/8 inches
Specifications Dimension C
2 3/16 inches
Specifications Dimension D
4 1/8 inches
Specifications Dimension E
1 11/16 inches
Specifications Finish
Galvanized | Plain
Specifications Inside Diameter Of Ring F
2 1/16 inches
Specifications Material
Carbon Steel | Malleable Iron
Specifications Maximum Load
300 lbs
Specifications Maximum Temperature
450 °F
Specifications Pipe Size
1 1/2 inches
Specifications Rod Size A
3/8 inches
Specifications Weight
0.41 lbs
