Adjustable Stainless Steel Thrust Collar Assembly
Adjustable Stainless Steel Thrust Collar Assembly
SKU:ROU-9c92bf
Achieve precise axial adjustability with the Stainless Steel Thrust Collar Assembly, ideal for heavy components and bearings.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Adjustable Stainless Steel Thrust Collar Assembly
$49.99
Quantity: 1
Claim Your Seller Account
Adjustable Stainless Steel Thrust Collar Assembly
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

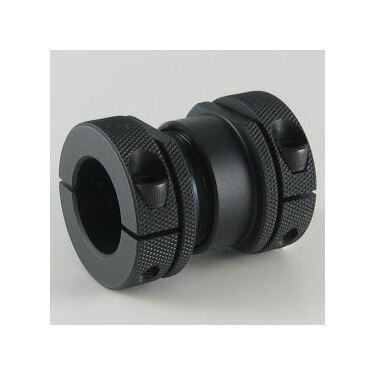

The Adjustable Stainless Steel Thrust Collar Assembly offers precise bi-directional axial adjustability along a shaft, perfect for positioning heavy components or pre-loading bearings. This assembly consists of two knurled collars with a male-female connecting hub for infinite adjustment. The wrench flats provide easy application of torque for secure positioning. With a bore size of 1 inch and an adjustment range of 0.5 inches, this assembly guarantees superior axial holding power and durability. Made of high-grade 303 stainless steel, this collar meets RoHS2 and REACH compliance, ensuring quality and environmental standards are met.
Product Specifications
Dimensional Attributes Adjustment Range
0.500 in
Dimensional Attributes Bore Size
1 in
Dimensional Attributes Closed Width
1.875 in
Dimensional Attributes Distance Across Flats
1.500 in
Dimensional Attributes Outside Diameter
1.750 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Total Width
2.375 in
Specifications Alloy
303
Specifications Approximate Weight
0.61 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Stainless Steel
Specifications Part Number
ATCS100
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Upc Code
662786023170
