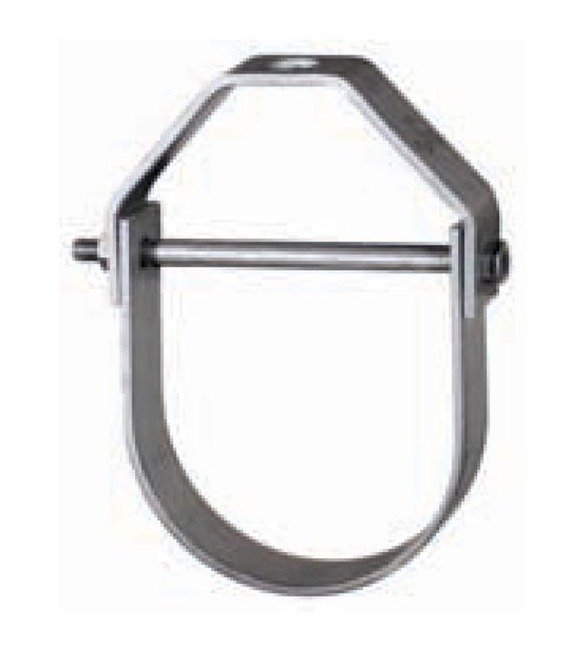

Adjustable Steel Clevis Pipe Hanger
Adjustable Steel Clevis Pipe Hanger
SKU:PIP-c04c41
Durable carbon steel Clevis Hanger for secure suspension of stationary pipe lines. Compliant with top industry standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Adjustable Steel Clevis Pipe Hanger
$24.99
Quantity: 1
Claim Your Seller Account
Adjustable Steel Clevis Pipe Hanger
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Adjustable Steel Clevis Pipe Hanger is a versatile solution for suspending stationary pipe lines. Made of durable carbon steel with options for epoxy, galvanized, or plain finishes, this hanger ensures reliable support. Its design prevents bolt bending, with easy vertical adjustment capabilities from 3/8" to 5 1/8". Compliant with Federal Specification A-A-1192A, WW-H-171-E, MSS-SP-69, UL, ULC Listed, and FM Approved standards.
Product Specifications

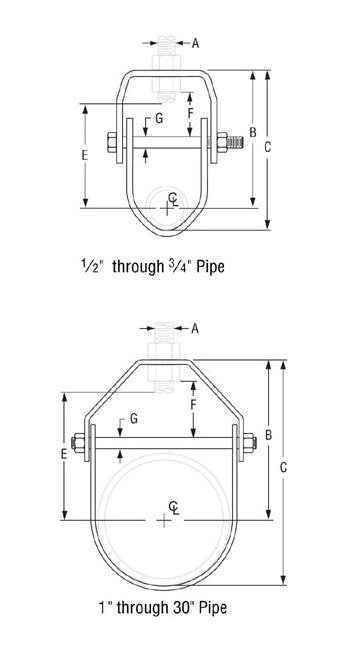

Specifications Adjustment F
1 5/16 inches
Specifications Dimension B
4 1/16 inches
Specifications Dimension C
5 1/2 inches
Specifications Dimension G
3/8 inches
Specifications Finish
Epoxy Coated | Galvanized | Plain | Plastic Coated
Specifications Material
Carbon Steel
Specifications Maximum Load
1350 lbs
Specifications Maximum Temperature Galvanized And Epoxy
450 °F
Specifications Maximum Temperature Plain
650 °F
Specifications Pipe Size
2 1/2 inches
Specifications Rod Size A
1/2 inches
Specifications Rod Take Out E
3 3/16 inches
Specifications Span
11 ft.
Specifications Weight
0.65 lbs
