Adjustable Swivel Ring - Split Ring Type, 1" Diameter
Adjustable Swivel Ring - Split Ring Type, 1" Diameter
SKU:PIP-363d3c
Efficiently suspend pipe lines with our Adjustable Swivel Ring - Split Ring Type, ensuring durability and compliance with top industry standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Adjustable Swivel Ring - Split Ring Type, 1" Diameter
$24.99
Quantity: 1
Claim Your Seller Account
Adjustable Swivel Ring - Split Ring Type, 1" Diameter
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

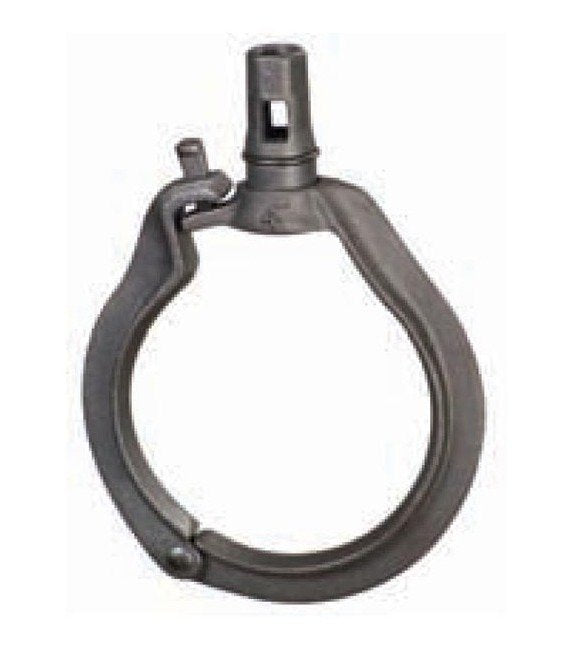

The Adjustable Swivel Ring, Split Ring Type offers unparalleled efficiency and durability for suspending non-insulated stationary pipe lines. Crafted from high-quality carbon steel and malleable iron, with a galvanized finish, this ring ensures optimal performance in diverse environments. Featuring a self-locking mechanism to prevent loosening due to vibration, it maintains the proper pipe pitch effortlessly. With labor-saving features and easy installation, it surpasses industry standards including Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69.

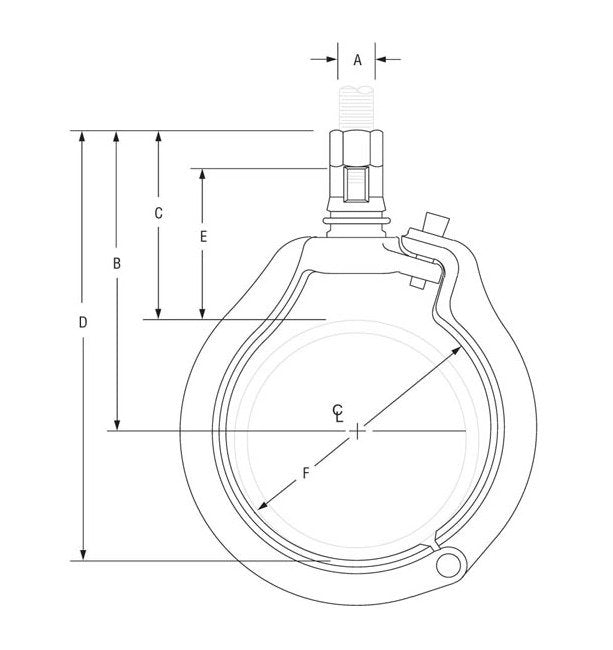

Product Specifications
Specifications Dimension B
2 7/8 inches
Specifications Dimension C
2 1/4 inches
Specifications Dimension D
3 9/16 inches
Specifications Dimension E
1 3/4 inches
Specifications Finish
Galvanized | Plain
Specifications Inside Diameter Of Ring F
1 7/16 inches
Specifications Material
Carbon Steel | Malleable Iron
Specifications Maximum Load
300 lbs
Specifications Maximum Temperature
450 °F
Specifications Pipe Size
1 inches
Specifications Rod Size A
3/8 inches
Specifications Weight
0.32 lbs
