Adjustable Swivel Ring, Tapped - Carbon Steel, Galvanized
Adjustable Swivel Ring, Tapped - Carbon Steel, Galvanized
SKU:PIP-fd7f40
Adjustable Swivel Ring, Tapped - Carbon Steel, Galvanized. Compliant with Federal Standards. Ideal for pipe line suspension.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Adjustable Swivel Ring, Tapped - Carbon Steel, Galvanized
$14.99
Quantity: 1
Claim Your Seller Account
Adjustable Swivel Ring, Tapped - Carbon Steel, Galvanized
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

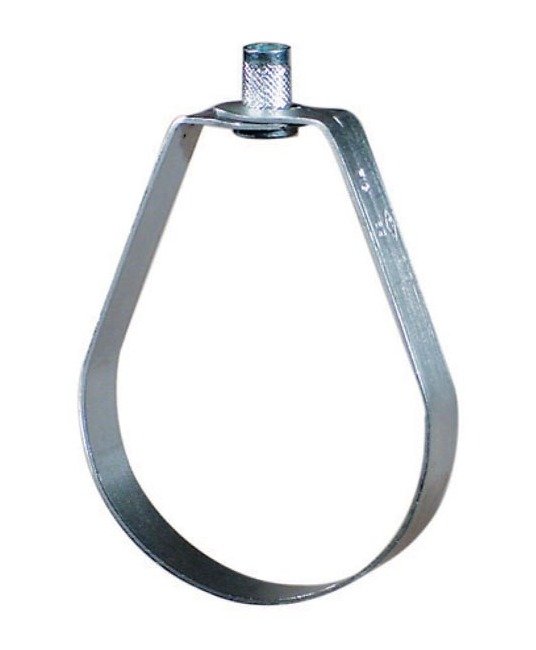

The Adjustable Swivel Ring, Tapped is designed for suspension of non-insulated stationary pipe lines. Made of carbon steel with a galvanized finish, it complies with Federal Specification A-A-1192A, WW-H-171-E, MSS-SP-69 standards. Featuring countersunk threads and a knurled swivel nut for easy vertical adjustment, this ring ensures secure pipe installation. With a maximum temperature of 650°F and a maximum load capacity of 300 lbs, it offers durability and reliability for a wide range of applications.
Product Specifications

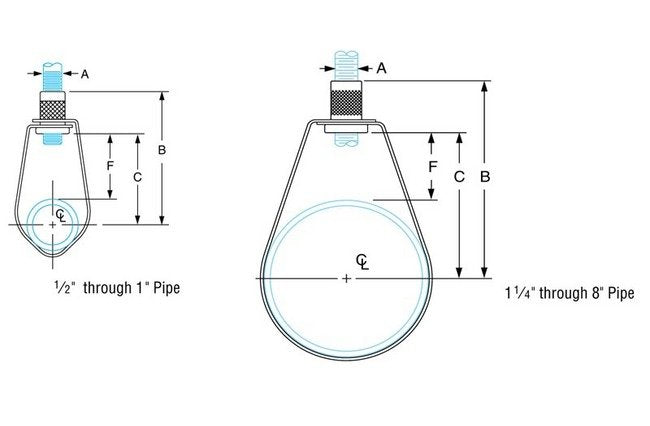

Specifications Dimension B
2 3/4 inches
Specifications Dimension C
1 7/8 inches
Specifications Dimension F
7/8 inches
Specifications Finish
Galvanized
Specifications Material
Carbon Steel
Specifications Maximum Load
300 lbs
Specifications Maximum Temperature
650 °F
Specifications Pipe Size
1 1/2 inches
Specifications Rod Size A
3/8 inches
Specifications Standards
NFPA
Specifications Weight
0.10 lbs
