Adjustable Swivel Ring, Tapped - Carbon Steel, Galvanized
Adjustable Swivel Ring, Tapped - Carbon Steel, Galvanized
SKU:PIP-6cddc1
Adjustable Swivel Ring for stationary pipe lines, carbon steel with galvanized finish, NFPA standards compliant.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Adjustable Swivel Ring, Tapped - Carbon Steel, Galvanized
$15.99
Quantity: 1
Claim Your Seller Account
Adjustable Swivel Ring, Tapped - Carbon Steel, Galvanized
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

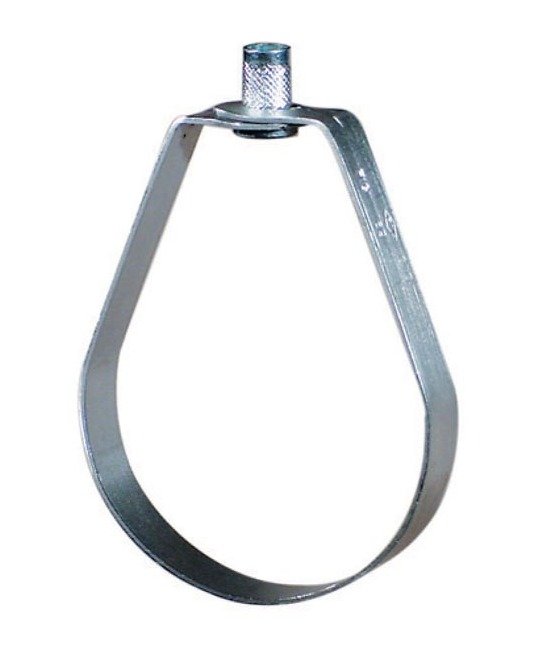

The Adjustable Swivel Ring, Tapped is designed for the suspension of non-insulated stationary pipe lines. Made of durable carbon steel with a galvanized finish, this product offers a size range from 1/2" through 8". It features countersunk threads to prevent damage, a knurled swivel nut for easy vertical adjustment, and meets NFPA standards. With a maximum temperature of 650°F and a maximum load capacity of 525 lbs, this swivel ring is UL, ULC listed, and FM approved.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

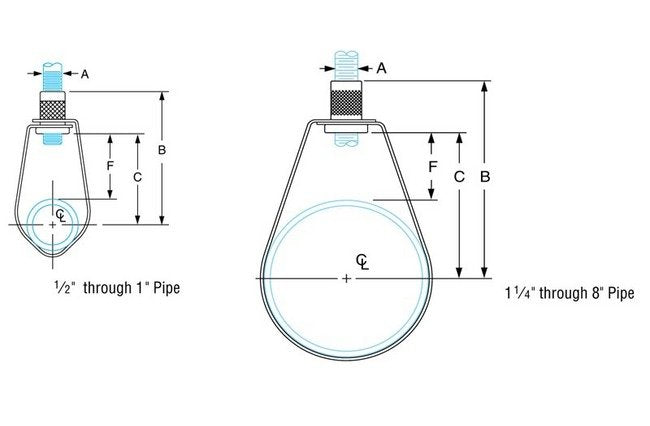

Specifications Dimension B
3 13/16 inches
Specifications Dimension C
2 15/16 inches
Specifications Dimension F
1 3/16 inches
Specifications Finish
Galvanized
Specifications Material
Carbon Steel
Specifications Maximum Load
525 lbs
Specifications Maximum Temperature
650 °F
Specifications Pipe Size
3 inches
Specifications Rod Size A
3/8 inches
Specifications Standards
NFPA
Specifications Weight
0.20 lbs
