Adjustable Swivel Ring, Tapped - Carbon Steel, Galvanized
Adjustable Swivel Ring, Tapped - Carbon Steel, Galvanized
SKU:PIP-feea1d
Durable carbon steel Adjustable Swivel Ring, Tapped with galvanized finish. NFPA compliant, ideal for pipe line suspension.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Adjustable Swivel Ring, Tapped - Carbon Steel, Galvanized
$12.99
Quantity: 1
Claim Your Seller Account
Adjustable Swivel Ring, Tapped - Carbon Steel, Galvanized
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

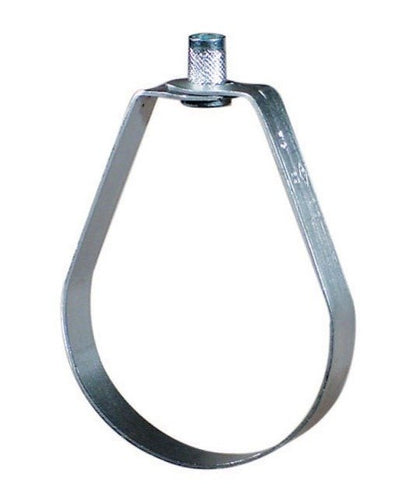

The Adjustable Swivel Ring, Tapped is a reliable solution for suspending non-insulated stationary pipe lines. Crafted from durable carbon steel with a galvanized finish, it can withstand temperatures up to 650°F and support a maximum load of 300 lbs. Featuring countersunk threads for protection and a knurled swivel nut for effortless vertical adjustment, this product meets NFPA standards and complies with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69.
Product Specifications

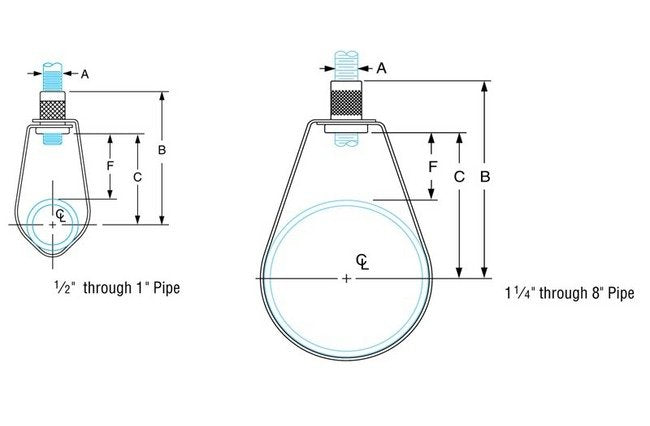

Specifications Dimension B
2 5/8 inches
Specifications Dimension C
1 3/4 inches
Specifications Dimension F
7/8 inches
Specifications Finish
Galvanized
Specifications Material
Carbon Steel
Specifications Maximum Load
300 lbs
Specifications Maximum Temperature
650 °F
Specifications Pipe Size
1 1/4 inches
Specifications Rod Size A
3/8 inches
Specifications Standards
NFPA
Specifications Weight
0.10 lbs
