Adjustable Swivel Ring, Tapped - Carbon Steel, Galvanized
Adjustable Swivel Ring, Tapped - Carbon Steel, Galvanized
SKU:PIP-2e7768
Durable carbon steel swivel ring with galvanized finish, compliant with Federal standards. Ideal for stationary pipe suspension.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Adjustable Swivel Ring, Tapped - Carbon Steel, Galvanized
$39.99
Quantity: 1
Claim Your Seller Account
Adjustable Swivel Ring, Tapped - Carbon Steel, Galvanized
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

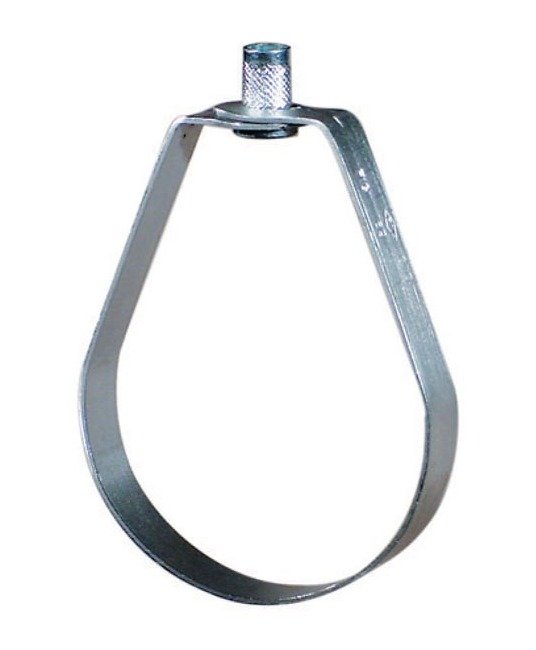

The Adjustable Swivel Ring, Tapped is a versatile pipe hanger crafted from carbon steel with a galvanized finish, suitable for suspending non-insulated stationary pipe lines. With a maximum temperature of 650°F and a maximum load capacity of 1000 lbs, this ring complies with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69 standards. The knurled swivel nut allows for easy vertical adjustment post-installation. Countersunk threads prevent burring or damage, ensuring durability and reliability.
Product Specifications

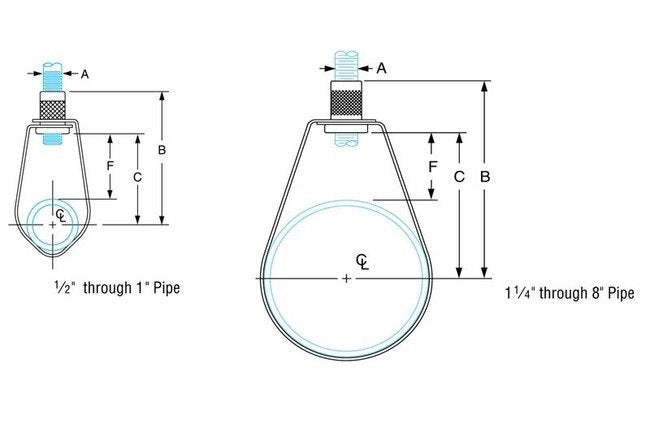

Specifications Dimension B
6 11/16 inches
Specifications Dimension C
5 9/16 inches
Specifications Dimension F
2 1/4 inches
Specifications Finish
Galvanized
Specifications Material
Carbon Steel
Specifications Maximum Load
1000 lbs
Specifications Maximum Temperature
650 °F
Specifications Pipe Size
6 inches
Specifications Rod Size A
1/2 inches
Specifications Standards
NFPA
Specifications Weight
0.65 lbs
