Adjustable Swivel Ring - Tapped, Carbon Steel, Galvanized
Adjustable Swivel Ring - Tapped, Carbon Steel, Galvanized
SKU:PIP-32a5e1
Durable Adjustable Swivel Ring for secure pipe suspension. Carbon steel with galvanized finish. Compliant with Federal standards.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Adjustable Swivel Ring - Tapped, Carbon Steel, Galvanized
$25.99
Quantity: 1
Claim Your Seller Account
Adjustable Swivel Ring - Tapped, Carbon Steel, Galvanized
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

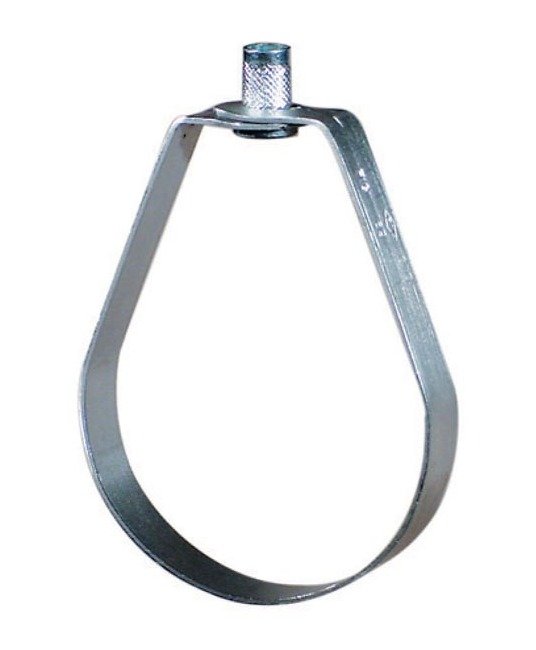

The Adjustable Swivel Ring, Tapped is a versatile pipe hanger suitable for suspending non-insulated stationary pipe lines. Crafted from durable carbon steel with a galvanized finish, it ensures reliable performance in diverse environments. Featuring a knurled swivel nut for easy vertical adjustment and threads that are countersunk to prevent damage, this product offers convenience and durability. Compliant with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69 standards, UL, ULC listed, and FM approved for sizes 3/4" to 8", this swivel ring meets stringent quality requirements, making it ideal for various applications.
Product Specifications

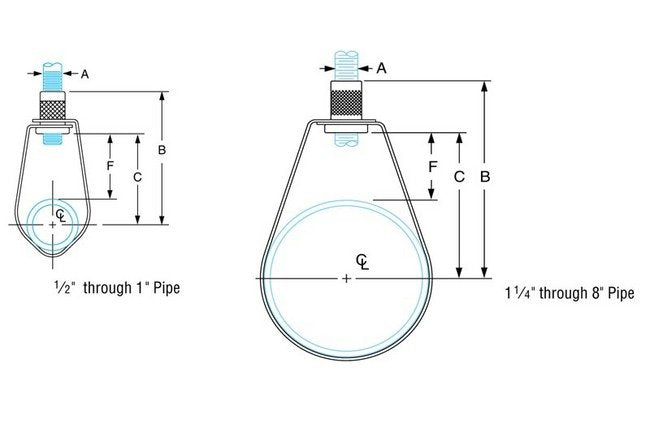

Specifications Dimension B
4 11/16 inches
Specifications Dimension C
3 13/16 inches
Specifications Dimension F
1 9/16 inches
Specifications Finish
Galvanized
Specifications Material
Carbon Steel
Specifications Maximum Load
650 lbs
Specifications Maximum Temperature
650 °F
Specifications Pipe Size
4 inches
Specifications Rod Size A
3/8 inches
Specifications Standards
NFPA
Specifications Weight
0.30 lbs
