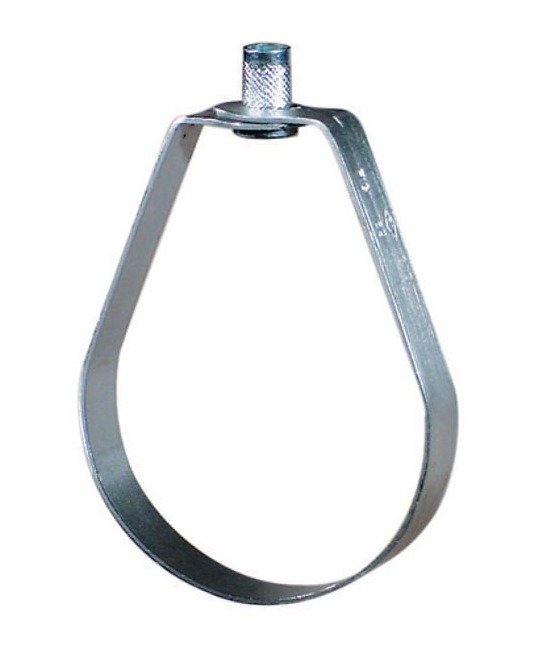

The Adjustable Swivel Ring is a versatile piping solution crafted from durable carbon steel with a galvanized finish, suitable for suspension applications of non-insulated stationary pipe lines. This ring features knurled swivel nut for easy vertical adjustment post-installation and countersunk threads to prevent damage. Compliant with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69, with UL, ULC, and FM approvals for enhanced safety. With a maximum temperature of 650°F, this ring ensures secure load-bearing capacity up to 525 lbs.
Product Specifications

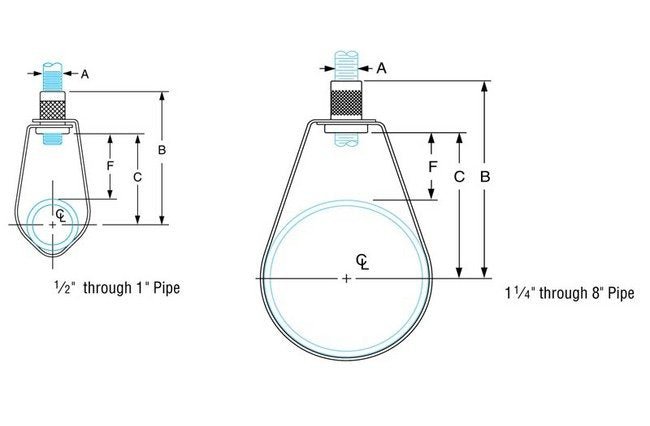

Specifications Dimension B
4 inches
Specifications Dimension C
2 3/4 inches
Specifications Dimension F
1 5/16 inches
Specifications Finish
Galvanized
Specifications Material
Carbon Steel
Specifications Maximum Load
525 lbs
Specifications Maximum Temperature
650 °F
Specifications Pipe Size
2 1/2 inches
Specifications Rod Size A
3/8 inches
Specifications Standards
NFPA
Specifications Weight
0.20 lbs
