Adjustable Swivel Ring, Tapped - Copper Plated | Yellow Dichromate

Name: Adjustable Swivel Ring, Tapped - Copper Plated | Yellow Dichromate
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-8ffb92
Price: 26.99 USD
Availability: OutOfStock

SKU:PIP-8ffb92

Durable Adjustable Swivel Ring for non-insulated copper tube suspension. Compliant with NFPA standards.

$26.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

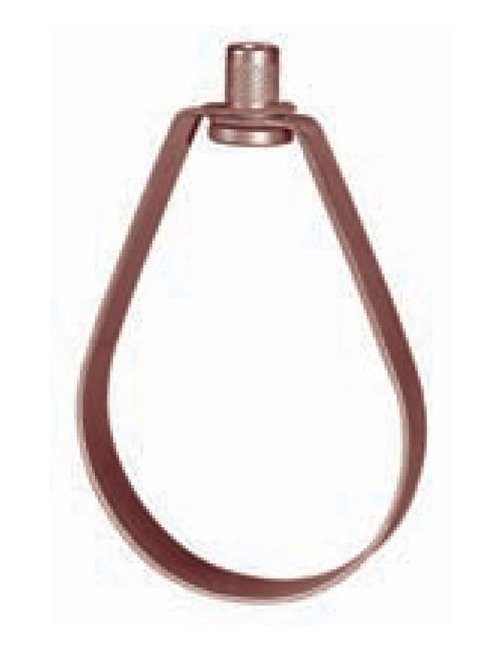

The Adjustable Swivel Ring, Tapped is designed for suspending non-insulated stationary copper tubes with precision and reliability. Made of durable carbon steel with a protective copper plated or yellow dichromate finish, this versatile hanger features threads that are countersunk, preventing damage. The knurled swivel nut allows for vertical adjustments post-installation, while the captured swivel nut ensures secure positioning. Compliant with Federal Specification A-A-1192A (Type 10), WW-H-171-E (Type 10), MSS-SP-69 (Type 10), and NFPA standards, this hanger offers a maximum load capacity of 650 lbs.

Product Specifications

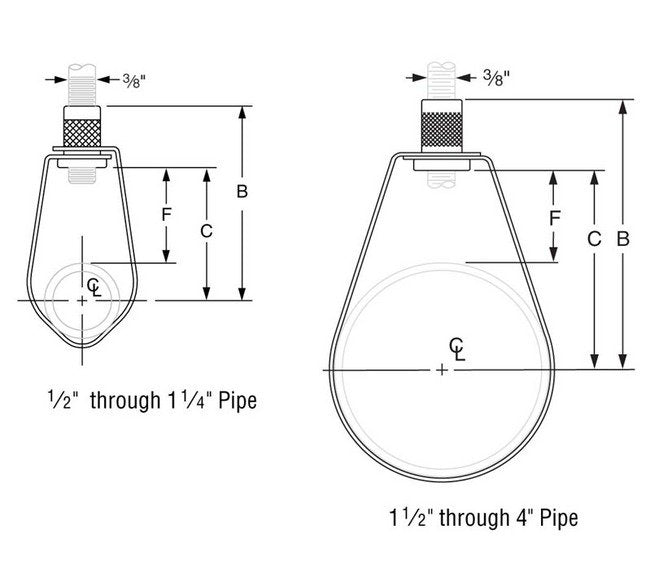

Specifications Dimension B

4 3/8 inches

Specifications Dimension C

3 1/2 inches

Specifications Dimension F

1 1/2 inches

Specifications Finish

Copper Plated | Yellow Dichromate

Specifications Material

Carbon Steel

Specifications Maximum Load

650 lbs

Specifications Standards

NFPA

Specifications Tube Size

4 inches

Specifications Weight

0.48 lbs

Adjustable Swivel Ring, Tapped - Copper Plated | Yellow Dichromate
