Adjustable Swivel Ring, Tapped - Copper Plated | Yellow Dichromate

Name: Adjustable Swivel Ring, Tapped - Copper Plated | Yellow Dichromate
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-d3f271
Price: 12.99 USD
Availability: OutOfStock

SKU:PIP-d3f271

Durable Adjustable Swivel Ring for suspending non-insulated copper tubing. Compliant with Federal Standards. Ideal for industrial use.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

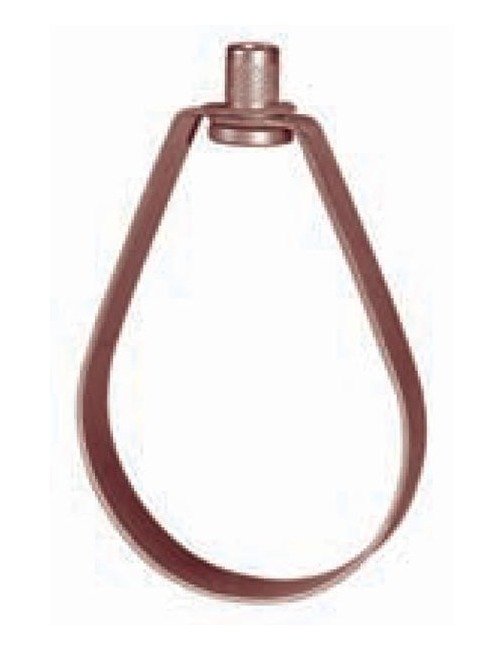

The Adjustable Swivel Ring, Tapped is specifically designed for suspending non-insulated stationary copper tubes in various industrial settings. Crafted from durable carbon steel with a copper plated or yellow dichromate finish, this ring ensures long-lasting performance. Featuring countersunk threads to prevent damage, a knurled swivel nut for easy vertical adjustment, and a captured swivel nut for added safety. Compliant with Federal Specification A-A-1192A (Type 10), WW-H-171-E (Type 10), and MSS-SP-69 (Type 10), meeting NFPA standards. Enhance your piping installations with this versatile, reliable swivel ring.

Product Specifications

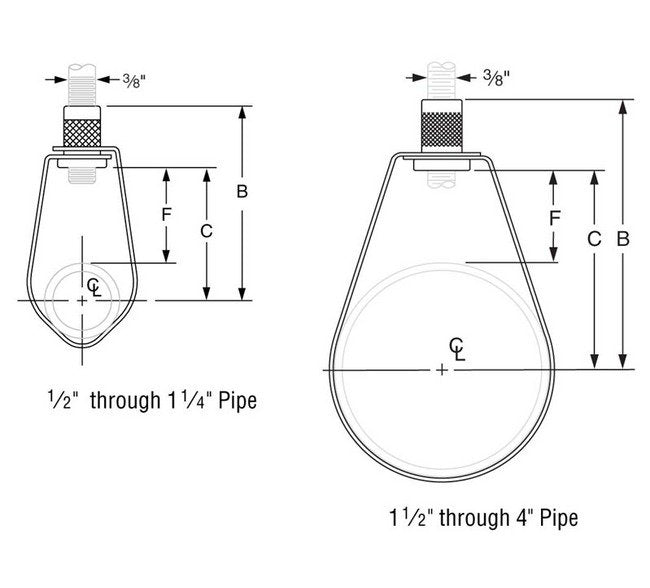

Specifications Dimension B

2 11/16 inches

Specifications Dimension C

1 13/16 inches

Specifications Dimension F

1 1/4 inches

Specifications Finish

Copper Plated | Yellow Dichromate

Specifications Material

Carbon Steel

Specifications Maximum Load

300 lbs

Specifications Standards

NFPA

Specifications Tube Size

1 inches

Specifications Weight

0.10 lbs

Adjustable Swivel Ring, Tapped - Copper Plated | Yellow Dichromate
