Adjustable Swivel Ring, Tapped - Copper Tubing Hanger

Name: Adjustable Swivel Ring, Tapped - Copper Tubing Hanger
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-5f3e8d
Price: 24.99 USD
Availability: OutOfStock

SKU:PIP-5f3e8d

Versatile Adjustable Swivel Ring for non-insulated copper tubes. Meets NFPA standards & supports up to 300 lbs.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

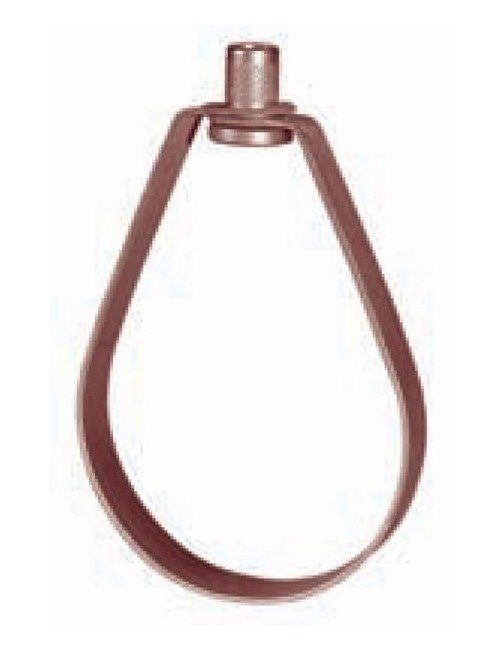

The Adjustable Swivel Ring, Tapped is a versatile solution for suspending non-insulated stationary copper tubes. Made of carbon steel with a copper plated finish, this swivel ring meets NFPA standards and is designed with a knurled swivel nut for easy vertical adjustment post-installation. With threads countersunk to prevent damage, a maximum load capacity of 300 lbs, and compliance with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69, this product ensures reliable support for various pipe sizes.

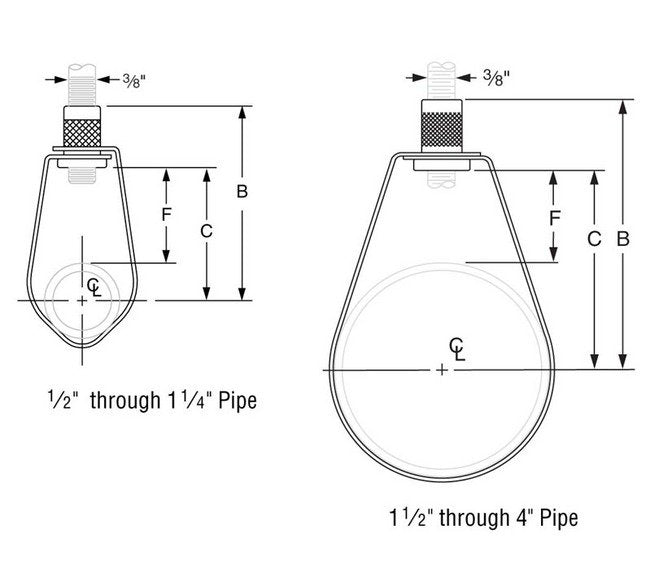

Product Specifications

Specifications Dimension B

3 inches

Specifications Dimension C

2 3/16 inches

Specifications Dimension F

1 7/8 inches

Specifications Finish

Copper Plated | Yellow Dichromate

Specifications Material

Carbon Steel

Specifications Maximum Load

300 lbs

Specifications Standards

NFPA

Specifications Tube Size

1/2 inches

Specifications Weight

0.10 lbs
