Adjustable Swivel Ring, Tapped - Copper Tubing Hangers

Name: Adjustable Swivel Ring, Tapped - Copper Tubing Hangers
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-a2595e
Price: 14.99 USD
Availability: OutOfStock

SKU:PIP-a2595e

Durable Adjustable Swivel Ring for copper tubing hangers, compliant with Federal standards. Supports up to 525 lbs.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

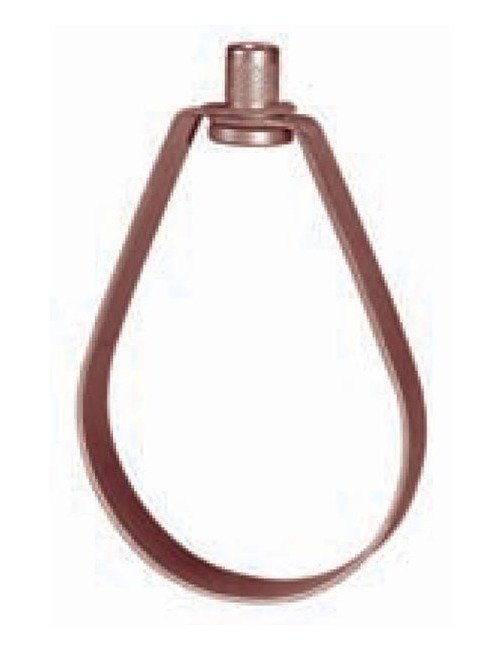

The Adjustable Swivel Ring, Tapped is a versatile solution for suspending non-insulated stationary copper tubes. Made of durable carbon steel with a copper plated finish, it features threads designed to prevent damage and a knurled swivel nut for vertical adjustments. Compliant with Federal Specification A-A-1192A (Type 10), WW-H-171-E (Type 10), and MSS-SP-69 (Type 10), this robust hanger can support up to 525 lbs, offering reliability and ease of installation for institutional applications.

Product Specifications

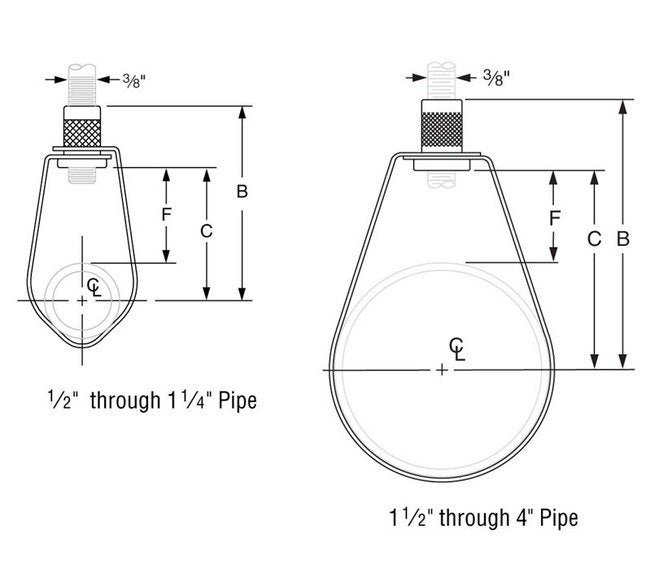

Specifications Dimension B

4 1/4 inches

Specifications Dimension C

3 3/8 inches

Specifications Dimension F

1 7/8 inches

Specifications Finish

Copper Plated | Yellow Dichromate

Specifications Material

Carbon Steel

Specifications Maximum Load

525 lbs

Specifications Standards

NFPA

Specifications Tube Size

3 inches

Specifications Weight

0.27 lbs
