Adjustable Swivel Ring, Tapped for Copper Tubing

Name: Adjustable Swivel Ring, Tapped for Copper Tubing
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-68434e
Price: 14.99 USD
Availability: OutOfStock

SKU:PIP-68434e

Durable Adjustable Swivel Ring for secure suspension of copper tubing, compliant with Federal standards and NFPA requirements.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

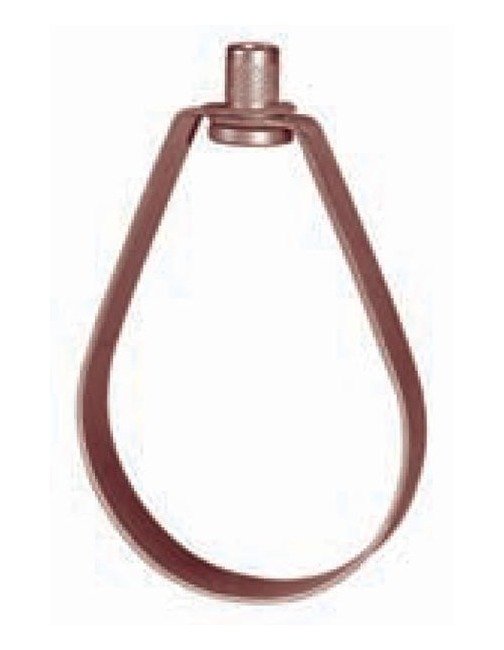

The Adjustable Swivel Ring, Tapped for Copper Tubing is a versatile solution for suspending non-insulated stationary copper tubes. Crafted from carbon steel with a copper plated finish, this product features countersunk threads to prevent damage, a knurled swivel nut for easy vertical adjustment, and a captured swivel nut design for added security. With a maximum load capacity of 300 lbs, this adjustable ring ensures reliable support. Compliant with Federal Specification A-A-1192A (Type 10), WW-H-171-E (Type 10), MSS-SP-69 (Type 10), and NFPA standards, this ring is a durable and efficient choice for secure pipe and tube installations.

Product Specifications

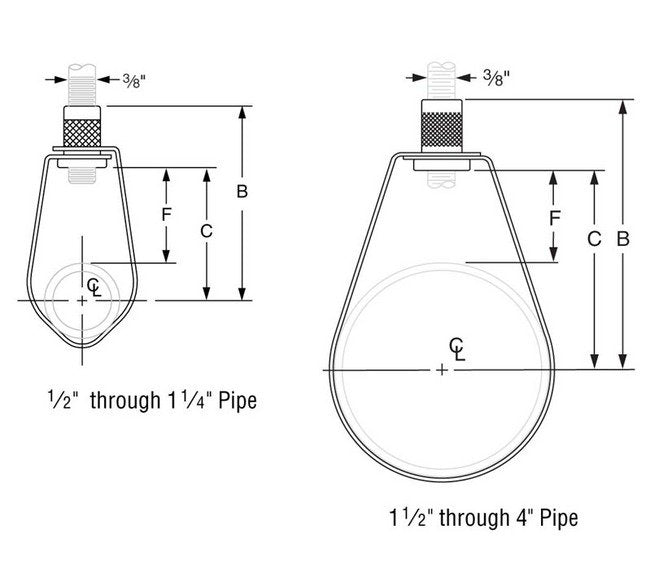

Specifications Dimension B

2 13/16 inches

Specifications Dimension C

2 inches

Specifications Dimension F

1 9/16 inches

Specifications Finish

Copper Plated | Yellow Dichromate

Specifications Material

Carbon Steel

Specifications Maximum Load

300 lbs

Specifications Standards

NFPA

Specifications Tube Size

3/4 inches

Specifications Weight

0.10 lbs
