Adjustable Swivel Ring, Tapped for Copper Tubing Suspension
Adjustable Swivel Ring, Tapped for Copper Tubing Suspension
SKU:PIP-a67757
Adjustable Swivel Ring for Copper Tubing Suspension, Carbon Steel with Copper Plated Finish, Compliant with Federal Specifications, ideal for non-insulated copper tubes.
Regular price
$12.99
Regular price
Sale price
$12.99
Unit price
per
Initiate Order
Adjustable Swivel Ring, Tapped for Copper Tubing Suspension
$12.99
Quantity: 1
Claim Your Seller Account
Adjustable Swivel Ring, Tapped for Copper Tubing Suspension
$12.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

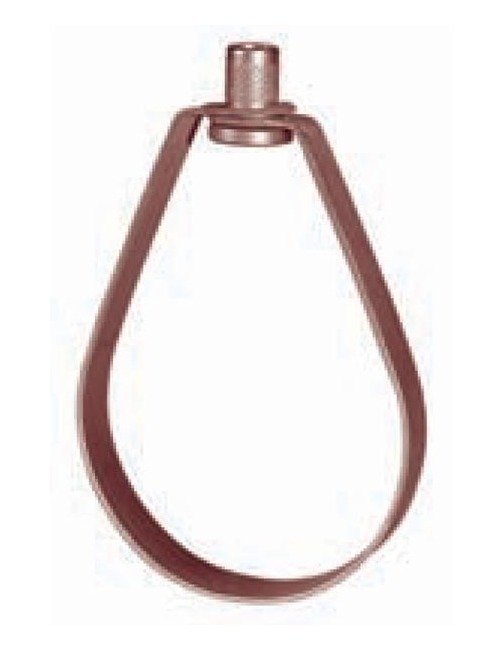

The Adjustable Swivel Ring, Tapped is a versatile solution designed for the suspension of non-insulated stationary copper tubes. Crafted from carbon steel with a durable copper plated finish, this ring features countersunk threads to prevent damage, a knurled swivel nut for vertical adjustment, and a captured swivel nut for secure installation. Compliant with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69, this product ensures reliability and performance in various applications. Specify tube size, figure number, and finish for a customized solution.
Product Specifications

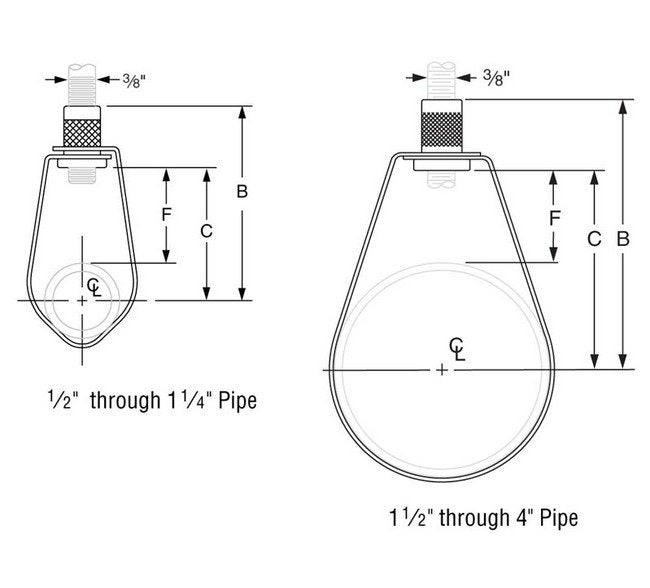

Specifications Dimension B
2 1/2 inches
Specifications Dimension C
1 5/8 inches
Specifications Dimension F
15/16 inches
Specifications Finish
Copper Plated | Yellow Dichromate
Specifications Material
Carbon Steel
Specifications Maximum Load
300 lbs
Specifications Standards
NFPA
Specifications Tube Size
1 1/4 inches
Specifications Weight
0.10 lbs
