Adjustable Swivel Ring, Tapped - Pipe Hanger
Adjustable Swivel Ring, Tapped - Pipe Hanger
SKU:PIP-ff3af7
Adjustable Swivel Ring, Tapped - Ideal for suspending non-insulated pipes. Carbon steel with galvanized finish. Complies with Federal standards. Sizes 1/2" to 8".
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Adjustable Swivel Ring, Tapped - Pipe Hanger
$39.99
Quantity: 1
Claim Your Seller Account
Adjustable Swivel Ring, Tapped - Pipe Hanger
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

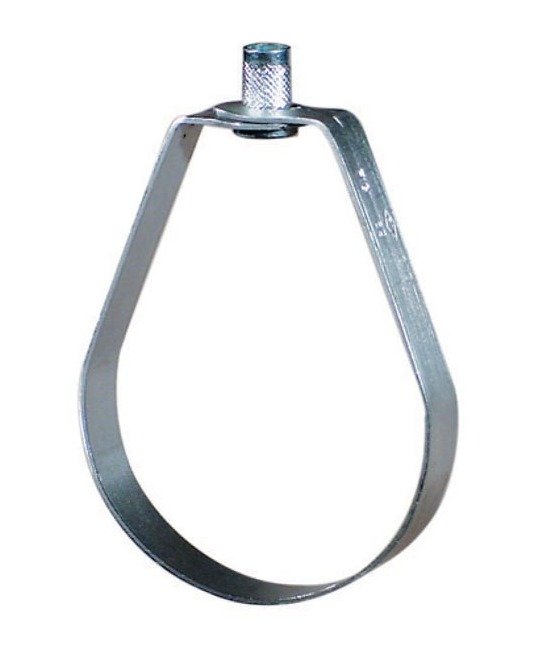

The Adjustable Swivel Ring, Tapped is a versatile solution for suspending non-insulated stationary pipe lines. Crafted from carbon steel with a galvanized finish, this ring is designed to withstand temperatures up to 650°F. Featuring knurled swivel nut for easy vertical adjustment and threaded countersunk holes for enhanced durability. Compliant with Federal Specification A-A-1192A, WW-H-171-E, MSS-SP-69, UL, ULC, and FM standards. Sizes ranging from 1/2" to 8", with metric nuts available upon request.

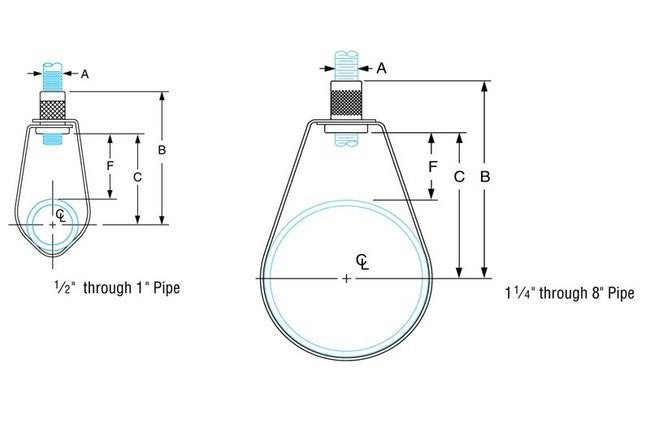

Product Specifications
Specifications Dimension B
8 inches
Specifications Dimension C
7 inches
Specifications Dimension F
2 11/16 inches
Specifications Finish
Galvanized
Specifications Material
Carbon Steel
Specifications Maximum Load
1000 lbs
Specifications Maximum Temperature
650 °F
Specifications Pipe Size
8 inches
Specifications Rod Size A
1/2 inches
Specifications Standards
NFPA
Specifications Weight
1.00 lbs
