Adjustable Swivel Ring, Tapped - Pipe Hanger with NFPA Standards Compliance
Adjustable Swivel Ring, Tapped - Pipe Hanger with NFPA Standards Compliance
SKU:PIP-af5044
Versatile pipe hanger with carbon steel construction, galvanized finish, and NFPA standards compliance.
Regular price
$14.99
Regular price
Sale price
$14.99
Unit price
per
Initiate Order
Adjustable Swivel Ring, Tapped - Pipe Hanger with NFPA Standards Compliance
$14.99
Quantity: 1
Claim Your Seller Account
Adjustable Swivel Ring, Tapped - Pipe Hanger with NFPA Standards Compliance
$14.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

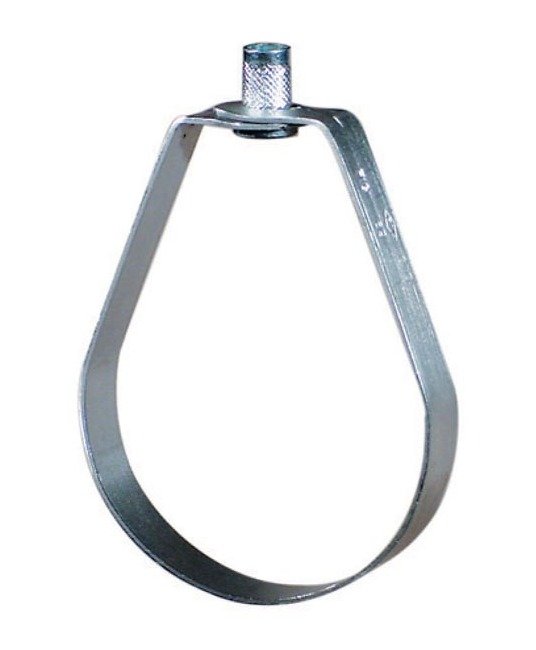

The Adjustable Swivel Ring, Tapped is a versatile pipe hanger designed for the suspension of non-insulated stationary pipelines. Made of carbon steel with a galvanized finish, this ring features a knurled swivel nut for vertical adjustment post-installation. With approvals from Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69, as well as UL, ULC, and FM listings, it ensures reliability and safety. The threads are countersunk to prevent damage, and it can withstand temperatures up to 650°F. Order now to experience its secure and adjustable design.

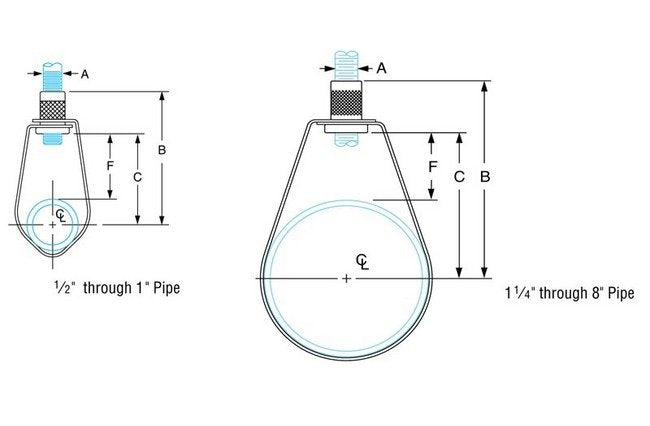

Product Specifications
Specifications Dimension B
2 9/16 inches
Specifications Dimension C
1 11/16 inches
Specifications Dimension F
1 inches
Specifications Finish
Galvanized
Specifications Material
Carbon Steel
Specifications Maximum Load
300 lbs
Specifications Maximum Temperature
650 °F
Specifications Pipe Size
1 inches
Specifications Rod Size A
3/8 inches
Specifications Standards
NFPA
Specifications Weight
0.10 lbs
