Adjustable Swivel Ring with Tapped Threads
Adjustable Swivel Ring with Tapped Threads
SKU:PIP-9efe45
Versatile Adjustable Swivel Ring for secure suspension of pipe lines. Complies with Federal standards. Ideal for high-temperature applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Adjustable Swivel Ring with Tapped Threads
$29.99
Quantity: 1
Claim Your Seller Account
Adjustable Swivel Ring with Tapped Threads
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

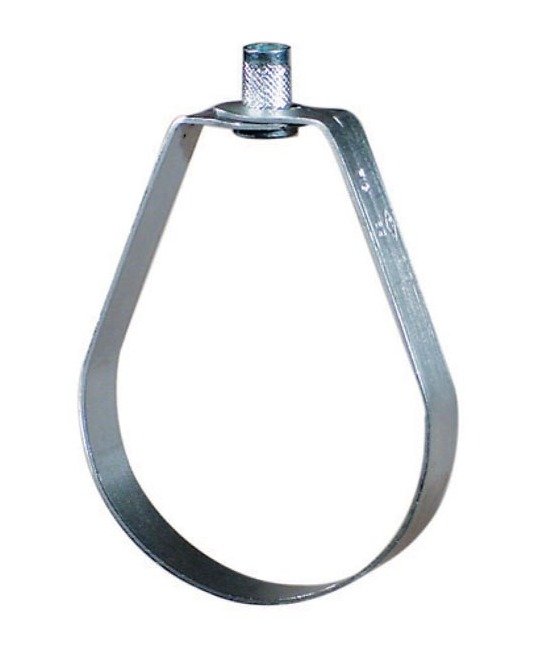

The Adjustable Swivel Ring with Tapped Threads is a versatile pipe hanger designed for suspending non-insulated stationary pipe lines. Constructed from durable carbon steel with a galvanized finish, this ring is engineered to withstand temperatures up to 650°F. It complies with Federal Specification A-A-1192A (Type 10), WW-H-171-E (Type 10), and MSS-SP-69 (Type 10), making it suitable for a wide range of applications. The knurled swivel nut allows for vertical adjustment post-installation, and the captured swivel nut ensures stability. With threads that are countersunk to prevent damage, this ring offers reliability and ease of use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

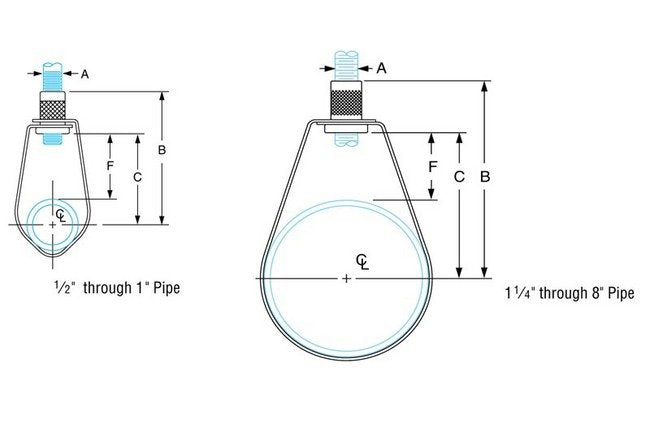

Specifications Dimension B
2 7/8 inches
Specifications Dimension C
2 inches
Specifications Dimension F
1 9/16 inches
Specifications Finish
Galvanized
Specifications Material
Carbon Steel
Specifications Maximum Load
300 lbs
Specifications Maximum Temperature
650 °F
Specifications Pipe Size
1/2 inches
Specifications Rod Size A
3/8 inches
Specifications Standards
NFPA
Specifications Weight
0.10 lbs
