Adjustable Swivel Ring with Tapped Threads

Name: Adjustable Swivel Ring with Tapped Threads
Brand: Caylor Industrial Sales, Inc.
SKU: PIP-e44eb9
Price: 24.99 USD
Availability: OutOfStock

SKU:PIP-e44eb9

Versatile Adjustable Swivel Ring for secure suspension of non-insulated pipe lines. Compliant with federal standards. Ideal for temperatures up to 650°F.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

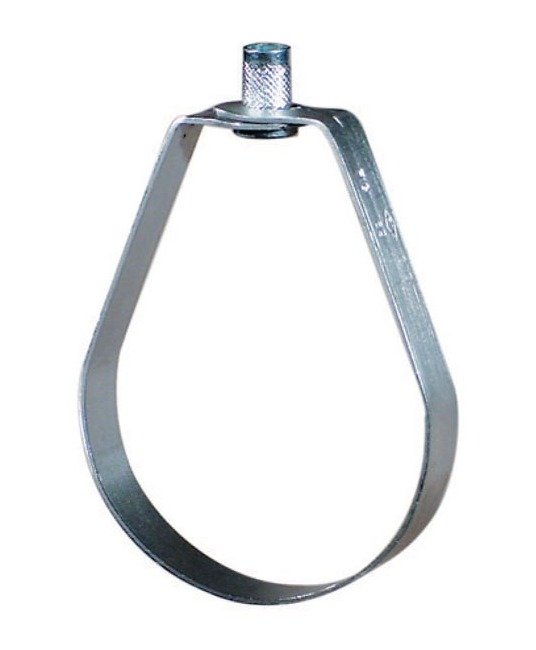

The Adjustable Swivel Ring with Tapped Threads is a versatile solution for suspending non-insulated stationary pipe lines. Constructed from durable carbon steel with a galvanized finish, this product offers exceptional strength and corrosion resistance. Compliant with Federal Specification A-A-1192A (Type 10), WW-H-171-E (Type 10), and MSS-SP-69 (Type 10), along with UL and FM approvals for sizes 3/4" to 8". The knurled swivel nut allows for easy vertical adjustment post-installation, while the countersunk threads prevent damage, ensuring long-term reliability. Suitable for applications up to 650°F, this swivel ring is a secure and user-friendly choice for various pipe suspension needs.

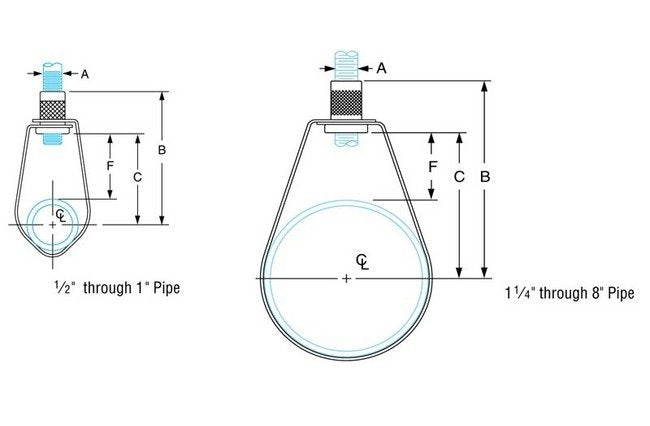

Product Specifications

Specifications Dimension B

2 3/4 inches

Specifications Dimension C

1 7/8 inches

Specifications Dimension F

1 5/16 inches

Specifications Finish

Galvanized

Specifications Material

Carbon Steel

Specifications Maximum Load

300 lbs

Specifications Maximum Temperature

650 Â°F

Specifications Pipe Size

3/4 inches

Specifications Rod Size A

3/8 inches

Specifications Standards

NFPA

Specifications Weight

0.10 lbs

Adjustable Swivel Ring with Tapped Threads
