Adjustable Swivel Ring with Tapped Threads
Adjustable Swivel Ring with Tapped Threads
SKU:PIP-be8bfd
Versatile Adjustable Swivel Ring for secure pipe suspension in diverse settings. Withstands up to 650°F. Meets Federal Specifications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Adjustable Swivel Ring with Tapped Threads
$29.99
Quantity: 1
Claim Your Seller Account
Adjustable Swivel Ring with Tapped Threads
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Adjustable Swivel Ring with Tapped Threads offers a versatile solution for suspending non-insulated stationary pipe lines. Made of durable carbon steel with a galvanized finish, this ring is designed to withstand temperatures up to 650°F. It complies with Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69, making it ideal for government and institutional use. The knurled swivel nut allows for vertical adjustment post-installation, ensuring easy alignment. With threads that are countersunk to prevent damage, this ring is reliable and efficient for various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

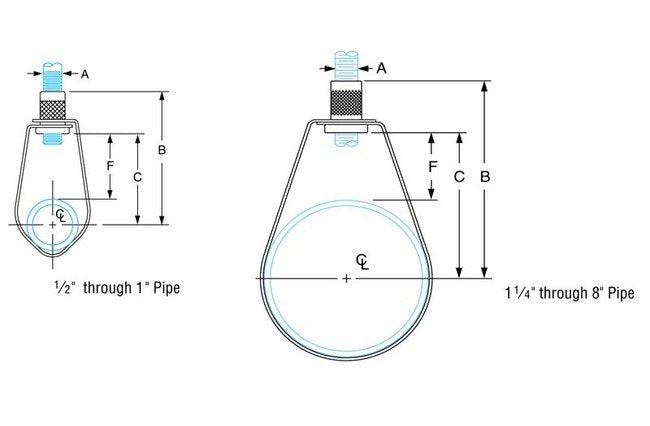

Specifications Dimension B
5 5/16 inches
Specifications Dimension C
4 3/8 inches
Specifications Dimension F
1 9/16 inches
Specifications Finish
Galvanized
Specifications Material
Carbon Steel
Specifications Maximum Load
1000 lbs
Specifications Maximum Temperature
650 °F
Specifications Pipe Size
5 inches
Specifications Rod Size A
1/2 inches
Specifications Standards
NFPA
Specifications Weight
0.54 lbs
