Adjustable Tapped Swivel Ring
Adjustable Tapped Swivel Ring
SKU:PIP-d4c86a
Adjustable Tapped Swivel Ring for suspending stationary pipes, galvanized finish, meets Federal standards, UL, ULC, FM approved.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Adjustable Tapped Swivel Ring
$15.99
Quantity: 1
Claim Your Seller Account
Adjustable Tapped Swivel Ring
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

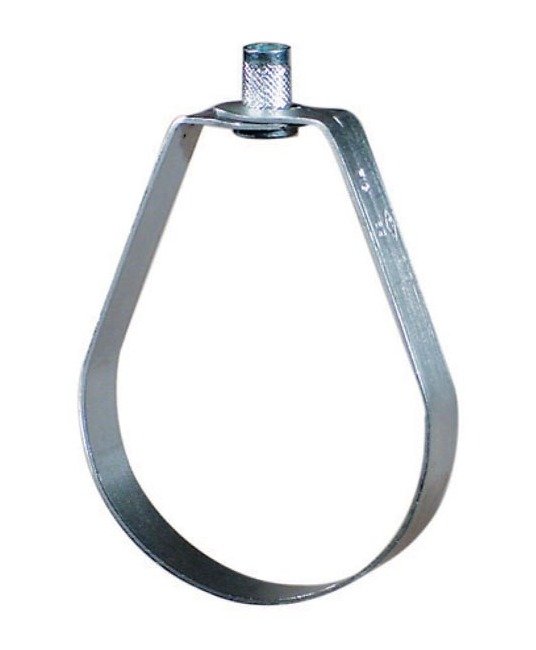

The Adjustable Tapped Swivel Ring is designed for suspending non-insulated stationary pipes, featuring a galvanized finish for corrosion resistance. With a size range from 1/2" to 8" and a maximum temperature of 650°F, this carbon steel ring meets Federal Specification A-A-1192A, WW-H-171-E, and MSS-SP-69 standards. The knurled swivel nut allows for vertical adjustment post-installation, with threads countersunk to prevent damage. UL, ULC listed, and FM approved in sizes 3/4" to 8".
Product Specifications

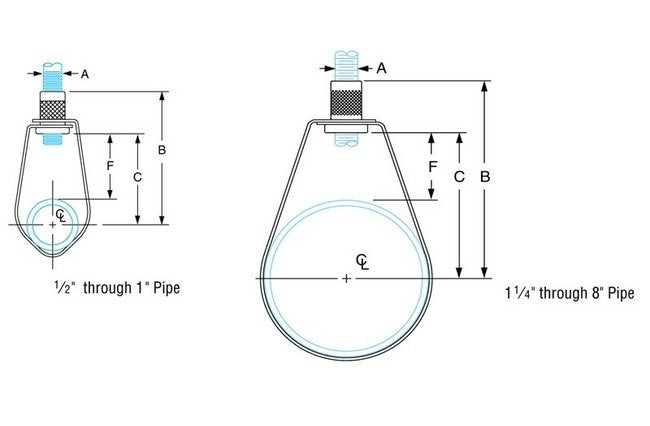

Specifications Dimension B
3 1/4 inches
Specifications Dimension C
2 3/8 inches
Specifications Dimension F
1 1/8 inches
Specifications Finish
Galvanized
Specifications Material
Carbon Steel
Specifications Maximum Load
300 lbs
Specifications Maximum Temperature
650 °F
Specifications Pipe Size
2 inches
Specifications Rod Size A
3/8 inches
Specifications Standards
NFPA
Specifications Weight
0.11 lbs
