Adjustable Tapped Swivel Ring - Copper Tubing Hanger
Adjustable Tapped Swivel Ring - Copper Tubing Hanger
SKU:PIP-cb6407
Adjustable Tapped Swivel Ring for non-insulated copper tubes, compliant with Federal and industry standards.
Regular price
$9.99
Regular price
Sale price
$9.99
Unit price
per
Initiate Order
Adjustable Tapped Swivel Ring - Copper Tubing Hanger
$9.99
Quantity: 1
Claim Your Seller Account
Adjustable Tapped Swivel Ring - Copper Tubing Hanger
$9.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

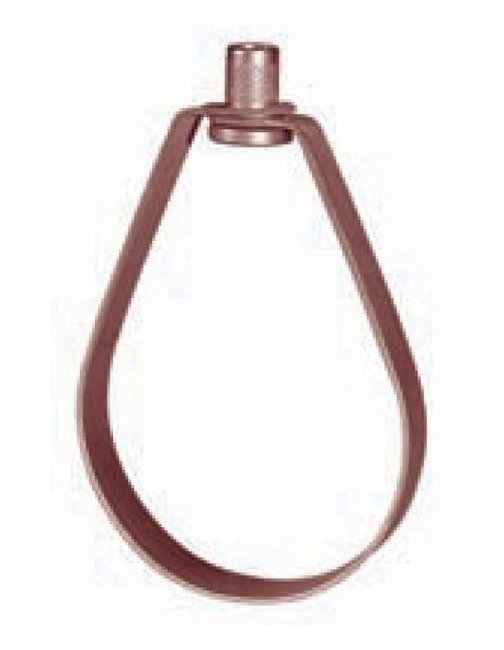

The Adjustable Tapped Swivel Ring is designed for suspending non-insulated stationary copper tubes with precision and ease. Crafted from durable carbon steel and finished with copper plating or yellow dichromate, this versatile hanger complies with Federal Specification A-A-1192A (Type 10), WW-H-171-E (Type 10), and MSS-SP-69 (Type 10) standards. Featuring countersunk threads to prevent damage, a knurled swivel nut for vertical adjustment, and a captured swivel nut for secure installations, this swivel ring offers reliability and convenience in pipe and tube mounting applications.
Product Specifications

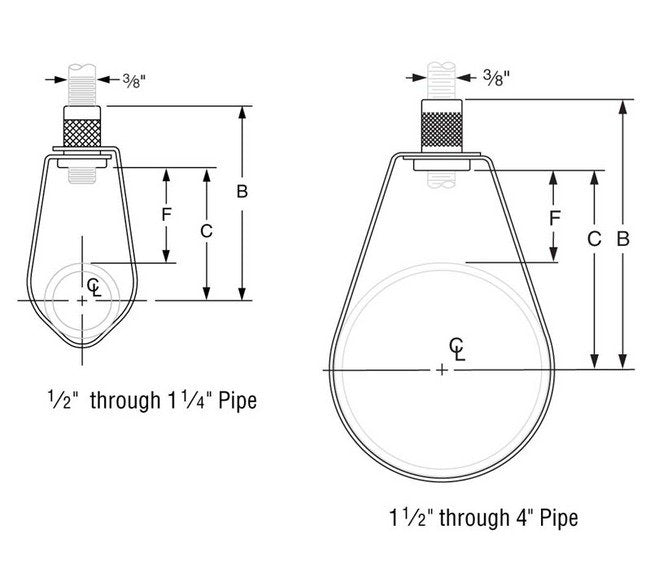

Specifications Dimension B
2 11/16 inches
Specifications Dimension C
1 13/16 inches
Specifications Dimension F
1.00 inches
Specifications Finish
Copper Plated | Yellow Dichromate
Specifications Material
Carbon Steel
Specifications Maximum Load
300 lbs
Specifications Standards
NFPA
Specifications Tube Size
1 1/2 inches
Specifications Weight
0.10 lbs
