Adjustable Thrust Collar Assembly - Stainless Steel Solution Series

Name: Adjustable Thrust Collar Assembly - Stainless Steel Solution Series
Brand: Stafford Manufacturing Corp.
SKU: ROU-1d280e
Price: 45.99 USD
Availability: OutOfStock

SKU:ROU-1d280e

Achieve precise axial adjustment with the Stainless Steel Solution Series Thrust Collar Assembly. Knurled edges, wrench flat, and superior holding power for versatile applications.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

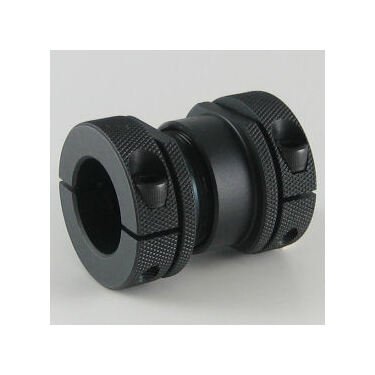

The Adjustable Thrust Collar Assembly, part of the Solution Series, offers precise bi-directional axial adjustability along a shaft. Ideal for both consumer and institutional use, this assembly features knurled edges for easy adjustment, a wrench flat for added torque application, and superior axial holding power. With a bore size of 1-3/8 in, outside diameter of 2.250 in, and adjustment range of 0.625 in, it provides infinite controlled movement for various applications, from pre-loading bearings to shifting heavy components. Crafted from 303 Stainless Steel, this assembly ensures durability and reliability, meeting RoHS2 and REACH compliance standards.

Product Specifications

Dimensional Attributes Adjustment Range

0.625 in

Dimensional Attributes Bore Size

1-3/8 in

Dimensional Attributes Closed Width

2.000 in

Dimensional Attributes Distance Across Flats

1.906 in

Dimensional Attributes Outside Diameter

2.250 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Total Width

2.625 in

Specifications Alloy

303

Specifications Approximate Weight

0.97 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Stainless Steel

Specifications Part Number

ATCS106

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Upc Code

662786023194

Adjustable Thrust Collar Assembly - Stainless Steel Solution Series
