Adjustable Thrust Collar Assembly with Bi-Directional Axial Adjustment
Adjustable Thrust Collar Assembly with Bi-Directional Axial Adjustment
SKU:ROU-f2fda3
Precision-controlled movement with superior holding power for shaft applications. Made in the USA, RoHS2 and REACH compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Adjustable Thrust Collar Assembly with Bi-Directional Axial Adjustment
$29.99
Quantity: 1
Claim Your Seller Account
Adjustable Thrust Collar Assembly with Bi-Directional Axial Adjustment
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

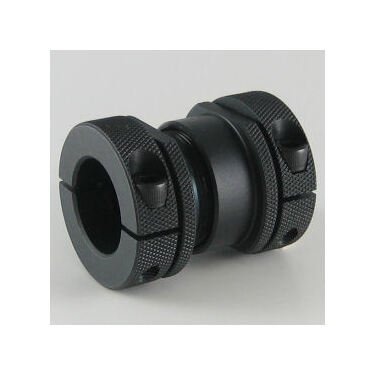

The Adjustable Thrust Collar Assembly with bi-directional axial adjustability offers precise movement control along a shaft. Featuring knurled edges for easy handling and wrench flats for added torque application, this assembly provides superior axial holding power. With a range of 3/8" to 3/4" adjustable range, it is ideal for various applications from pre-loading bearings to shifting heavy components effortlessly. Crafted from durable steel with a black oxide finish, this assembly ensures reliability and longevity. Made in the USA, it meets RoHS2 and REACH compliance standards.
Product Specifications
Dimensional Attributes Adjustment Range
0.500 in
Dimensional Attributes Bore Size
3/4 in
Dimensional Attributes Closed Width
1.875 in
Dimensional Attributes Distance Across Flats
1.218 in
Dimensional Attributes Outside Diameter
1.500 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Total Width
2.375 in
Specifications Alloy
1215
Specifications Approximate Weight
0.48 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
ATCL012
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Upc Code
662786023088
