Adjustable Width Vertical Case Transport Conveyor
Adjustable Width Vertical Case Transport Conveyor
SKU:VER-c1c880
Print on two sides efficiently with the Adjustable Width Case Transport Conveyor by Eastey®. Programmable counter, industrial strength, inkjet system compatibility.
Regular price
$6,299.99
Regular price
Sale price
$6,299.99
Unit price
per
Initiate Order
Adjustable Width Vertical Case Transport Conveyor
$6,299.99
Quantity: 1
Claim Your Seller Account
Adjustable Width Vertical Case Transport Conveyor
$6,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

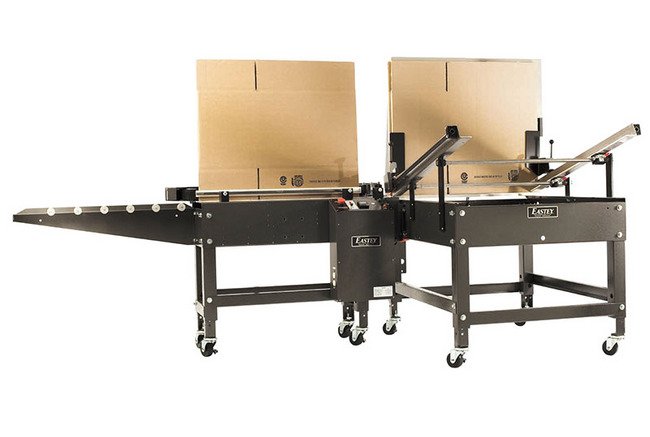

The Adjustable Width Vertical Case Transport Conveyor by Eastey® streamlines case printing on two sides without pre-printed cases, reducing costs. With an input hopper capacity of up to 90 flat single wall cases and adjustable width settings from 10 to 33 inches, this industrial-strength conveyor features a programmable counter for batch operations and integrates seamlessly with inkjet printing systems. Its rugged design, easy maintenance, and versatile operation make it a cost-effective solution for case transport needs.
Product Specifications
Affordable Versatility Affordable Versatility
If youâve wanted to begin printing your cases or expand your operationâs versatility, but felt your budget restricted you from doing so, Eastey®âs VCTS offers a new level of economy. Eliminate the high costs associated with pre-printed cases by printing specific product information directly onto blank cases. Any way you look at it, Eastey®âs VCTS provides users with an affordable solution to meet your case printing needs.
Automatic Operation Automatic Operation
Designed for off-line case printing, the VCTS automatically feeds blank cases through a print station that is ideal for mounting hi-resolution inkjet printers and offers the ability to print virtually anywhere on either side of the case. Open access to printheads allows for easy maintenance and quick adjustments. The VCTS also features an input hopper that can hold up to 90 flat single wall cases and can easily be reloaded by one person.
Box Specifications Maximum Box Size
33.0 in
Box Specifications Minimum Box Size
10.0 in
Easy To Program Easy To Program
The VCTS includes a programmable counter that keeps track of batch quantities, rate of operation, and elapsed run time, allowing users the ability to customize case runs. The system can be easily programmed to shut down when the maximum count is reached. The VCTS batch counter is the ideal solution for users looking to print a message on specific number of cases while eliminating the need for manual case counting.
Features Features
Plug-in and go operationFast and easy box size changesPowder coated 12 gauge steelLow maintenanceIndustrial strength side beltsAccommodates wide box size changeAdjustable leg extensionsSimple integration with ink jet printersHeavy duty locking casters
Increased Inventory Space Increased Inventory Space
Eastey娉s VCTS is an ideal option for users who are looking to increase storage space by eliminating pre-printed case inventories. Equipped with casters, the VCTS can be easily moved throughout the plant to accommodate your various printing needs.
Industrial Strength Operation Industrial Strength Operation
A single drive motor and an aggressive industrial strength drive belt make the VCTS a workhorse that will stand up to your toughest challenges. Each VCTS is made from powder coated 12 gauge steel that will withstand even the most rugged applications.
Optional Accessories Optional Accessories
Inkjet Printing System - Hi-resolution printing system capable of printing bar codes, graphics and text
Technical Specs Air Pressure
80 psi
Technical Specs Alternating Current Ac Voltage
110 V
Technical Specs Approximate Belt Speed For 10 X 10 Inch In Size
50 cases/min
Technical Specs Belt Speed
72 ft/min
Technical Specs Brands
Eastey®
Technical Specs Casters
Attached to each section for transport throughout the plant
Technical Specs Current
4 A
Technical Specs Fitting Type
1/4 in. National Pipe Thread (NPT) Fitting
Technical Specs Frequency
60 Hz
Technical Specs Input Hopper Adjustments Width
10 to 33 in
Technical Specs Input Hopper Capacity
Up to 90 Flat Single Wall Cases
Technical Specs Machinery Makeup
Industrial strength 12 gauge steel, powder coated for durability
Technical Specs Printing System Compatibility
Designed for inkjet printing system compatibility
Technical Specs Programmable Counter
Designed for batch operations, rate metering, and elapsed counting
The Right Solution The Right Solution
Rugged design. Proven reliability. Simple operation. Your benefits go on and on. When it comes to industrial operation, rely on Eastey to provide the right solution for your case transport needs.
