Adjustable Yoke Ends - Carbon Steel, UNC/UNF Threads

Name: Adjustable Yoke Ends - Carbon Steel, UNC/UNF Threads
Brand: Lexco Cable Manufacturing
SKU: WIR-a167c9
Price: 24.99 USD
Availability: OutOfStock

SKU:WIR-a167c9

Durable Adjustable Yoke Ends with UNC/UNF Threads, Ideal for Various Applications

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

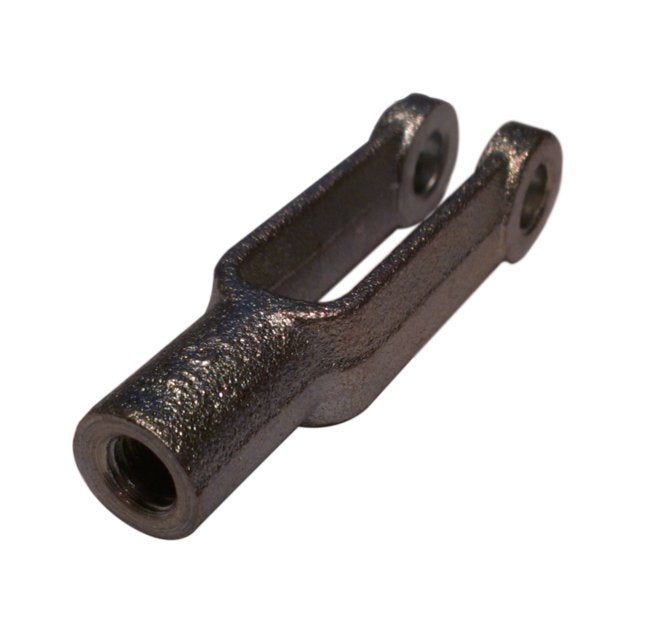

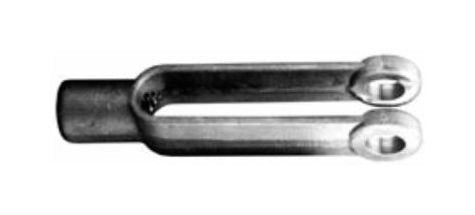

Our Adjustable Yoke Ends are crafted from C-1030 carbon steel, featuring U.N.C. and U.N.F. Class 2B threads in Right or Left Hand orientation. These Yoke Ends come in Self-Colored or Zinc Plated finishes, with options for special machining and threading to suit specific requirements. With Tap Thread of 3/4 inches and a sturdy build, these Yoke Ends ensure reliable performance and durability for a variety of applications.

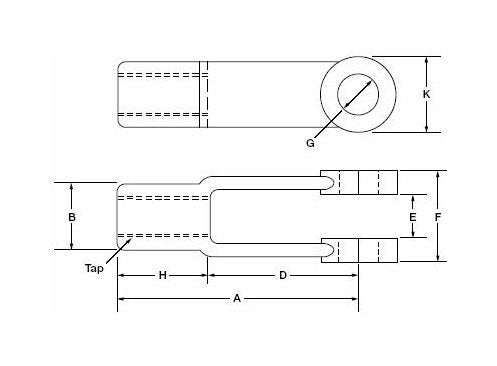

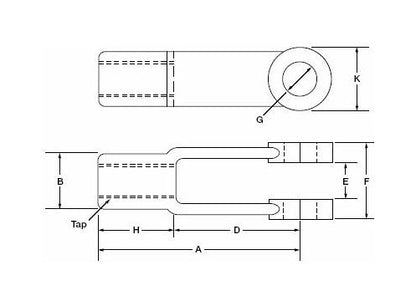

Product Specifications

Specifications A In

6 1/16

Specifications B In

1 1/4

Specifications D In

4 9/16

Specifications E In

13/16

Specifications F In

1 5/8

Specifications G In

3/4

Specifications H In

1 1/2

Specifications K In

1 7/16

Specifications Material Finish

Self-Colored Carbon Steel | Zinc Plated Carbon Steel

Specifications Specify Rh Thread Or Lh Thread

RH Thread | LH Thread

Specifications Specify Thread Pitch

UNC | UNF

Specifications Tap Thread In

3/4

Specifications Wt Lbs

1.15

CAGE

0T9L4

NAICS

332510

PSC

4030
