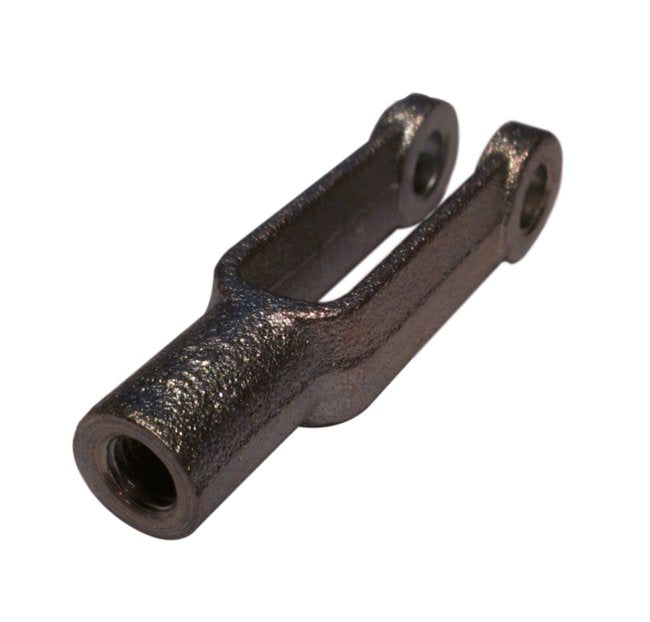

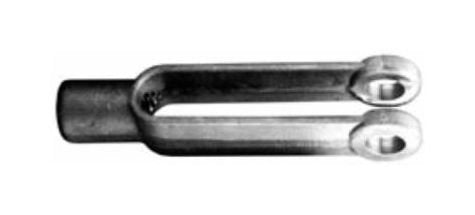

Adjustable Yoke Ends - Carbon Steel, UNC/UNF Threads, RH/LH Options
Adjustable Yoke Ends - Carbon Steel, UNC/UNF Threads, RH/LH Options
SKU:WIR-19f255
Durable Adjustable Yoke Ends in carbon steel with UNC/UNF threads, RH/LH options & corrosion-resistant finish. Ideal for various wire rope applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Adjustable Yoke Ends - Carbon Steel, UNC/UNF Threads, RH/LH Options
$29.99
Quantity: 1
Claim Your Seller Account
Adjustable Yoke Ends - Carbon Steel, UNC/UNF Threads, RH/LH Options
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Adjustable Yoke Ends are constructed from C-1030 carbon steel, featuring UNC/UNF Class 2B threads available in Right or Left Hand options. With a self-colored or zinc-plated finish, these yoke ends offer exceptional durability and corrosion resistance. Special machining and threading options are also available to meet specific requirements, making them ideal for a wide range of wire rope applications.

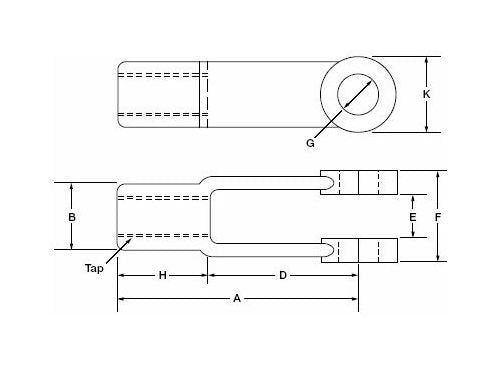

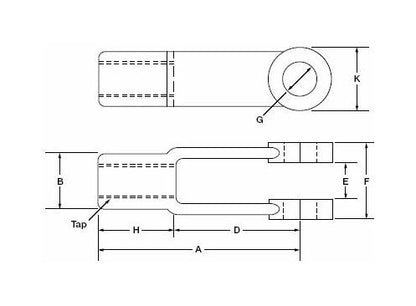

Product Specifications
Specifications A In
4 15/16
Specifications B In
1 1/16
Specifications D In
3 11/16
Specifications E In
11/16
Specifications F In
1 3/8
Specifications G In
5/8
Specifications H In
1 1/4
Specifications K In
1 3/16
Specifications Material Finish
Self-Colored Carbon Steel | Zinc Plated Carbon Steel
Specifications Specify Rh Thread Or Lh Thread
RH Thread | LH Thread
Specifications Specify Thread Pitch
UNC | UNF
Specifications Tap Thread In
5/8
Specifications Wt Lbs
0.85
CAGE
0T9L4
NAICS
332510
PSC
4030
