ADP Series Threaded Aluminum Plugs for Flareless Tube Assemblies

Name: ADP Series Threaded Aluminum Plugs for Flareless Tube Assemblies
Brand: Arizona Sealing Devices, Inc.
SKU: PLU-5fcb70
Price: 14.99 USD
Availability: OutOfStock

SKU:PLU-5fcb70

Seal flareless tube ends effectively with ADP Series Aluminum Plugs. Made from 3003-0 Aluminum Alloy, compliant with MIL-C-5501/2 and NAS-842.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

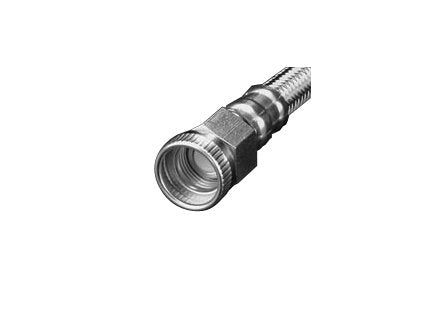

The ADP Series Threaded Aluminum Plugs are designed with a dimpled nose section for a low pressure seal on flareless tube ends. Featuring a neoprene shoulder gasket, the ADP-GN model ensures a positive seal on the O-ring port spot face. This product, crafted from 3003-0 Aluminum Alloy, meets MIL-C-5501/2 and NAS-842 specifications, making it ideal for 1/4 inch tube sizes with a 7/16"-20 thread size. Optional Butyl or Buna N rubber gaskets are available for versatile sealing solutions.

Product Specifications

Specifications Applicable Specification

MIL-C-5501/2 | NAS-842

Specifications Color

Natural (silver)

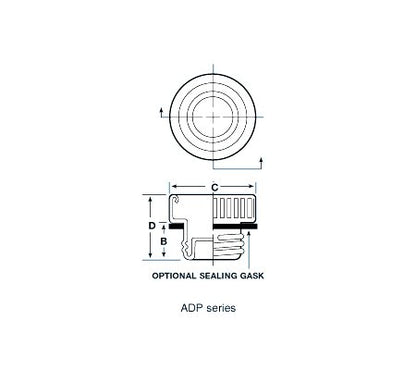

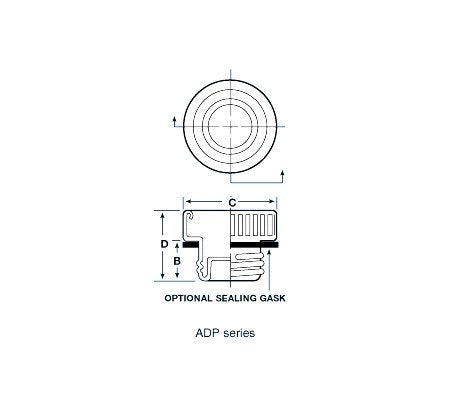

Specifications Dimension B

0.290 in

Specifications Dimension C

0.61 in

Specifications Dimension D

0.540 in

Specifications Material

3003-0 Aluminum Alloy

Specifications To Fit Thread Size

7/16"-20

Specifications To Fit Tube Size

1/4 in
