ADP Series Threaded Aluminum Plugs for Flareless Tube Assemblies

Name: ADP Series Threaded Aluminum Plugs for Flareless Tube Assemblies
Brand: Arizona Sealing Devices, Inc.
SKU: PLU-d26c0e
Price: 15.99 USD
Availability: OutOfStock

SKU:PLU-d26c0e

Seal flareless tube ends securely with ADP Series Aluminum Plugs. Neoprene shoulder gasket for reliable O-ring port sealing. Optional rubber gaskets available.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

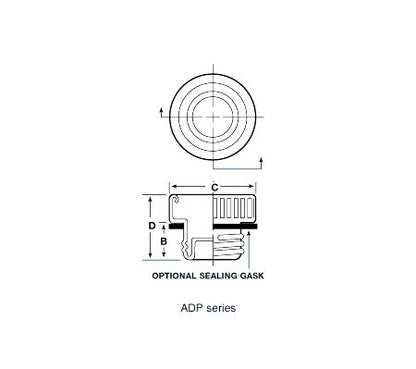

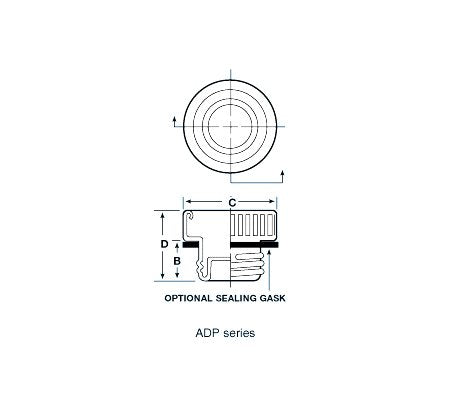

The ADP Series Threaded Aluminum Plugs are designed with a dimpled nose section to create a secure low-pressure seal with flareless tube ends. Equipped with a neoprene shoulder gasket, such as the ADP-GN variant, they deliver a reliable seal on the O-ring port's spot face. Optional Butyl or Buna N rubber gaskets are available for added customization. Crafted from 3003-0 Aluminum Alloy, these plugs meet MIL-C-5501/2 and NAS-842 specifications. With dimensions B, C, and D carefully engineered, they ensure a precise fit for 3/16 in tubes with 3/8"-24 thread size.

Product Specifications

Specifications Applicable Specification

MIL-C-5501/2 | NAS-842

Specifications Color

Natural (silver)

Specifications Dimension B

0.280 in

Specifications Dimension C

0.570 in

Specifications Dimension D

0.520 in

Specifications Material

3003-0 Aluminum Alloy

Specifications To Fit Thread Size

3/8"-24

Specifications To Fit Tube Size

3/16 in

ADP Series Threaded Aluminum Plugs for Flareless Tube Assemblies
