ADP Series Threaded Aluminum Plugs for Flareless Tube & Hose Assemblies

Name: ADP Series Threaded Aluminum Plugs for Flareless Tube & Hose Assemblies
Brand: Arizona Sealing Devices, Inc.
SKU: PLU-6a8e37
Price: 14.99 USD
Availability: OutOfStock

SKU:PLU-6a8e37

ADP Series Aluminum Plugs - Dimpled nose for low-pressure sealing, neoprene gasket for positive seal. Meets MIL-C-5501/2 | NAS-842.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

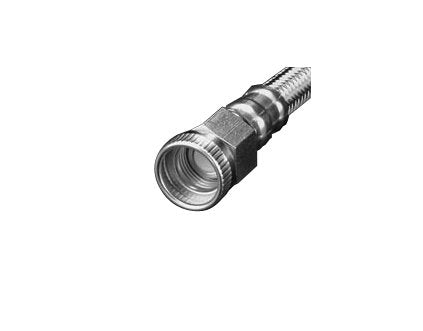

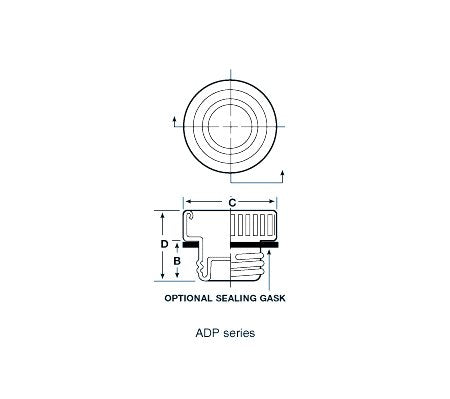

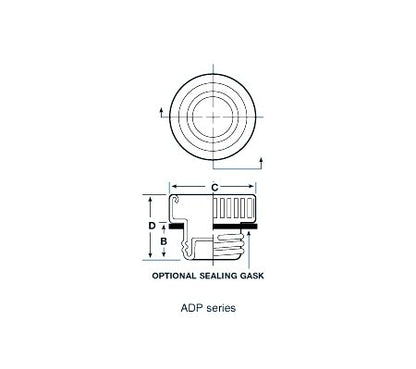

The ADP Series Threaded Aluminum Plugs are designed for forming a low-pressure seal with flareless tube ends. Featuring a dimpled nose section and a neoprene shoulder gasket for positive sealing, these plugs are made of 3003-0 Aluminum Alloy and are available in natural silver color. With optional gaskets in Butyl or Buna N rubber, these plugs meet MIL-C-5501/2 and NAS-842 specifications. Fit for 5/32 in tubes with 5/16"-24 thread size, dimensions B, C, and D are 0.340 in, 0.470 in, and 0.520 in respectively.

Product Specifications

Specifications Applicable Specification

MIL-C-5501/2 | NAS-842

Specifications Color

Natural (silver)

Specifications Dimension B

0.340 in

Specifications Dimension C

0.470 in

Specifications Dimension D

0.520 in

Specifications Material

3003-0 Aluminum Alloy

Specifications To Fit Thread Size

5/16"-24

Specifications To Fit Tube Size

5/32 in
