Advance Lifts 1000 lb Hydraulic VRC Mezzanine Access Lift
Advance Lifts 1000 lb Hydraulic VRC Mezzanine Access Lift
SKU:MEZ-b733a0
Efficiently move goods between floors with the Advance Lifts 1000 lb Hydraulic VRC Mezzanine Access Lift, designed for safety and reliability.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
Advance Lifts 1000 lb Hydraulic VRC Mezzanine Access Lift
$7,499.99
Quantity: 1
Claim Your Seller Account
Advance Lifts 1000 lb Hydraulic VRC Mezzanine Access Lift
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

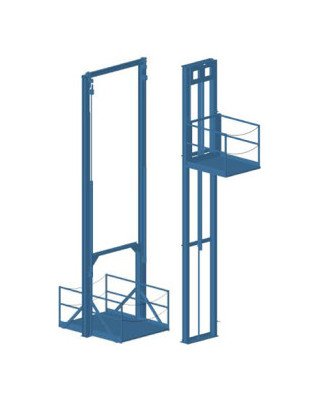

The Advance Lifts 1000 lb Hydraulic VRC Mezzanine Access Lift is designed to efficiently and safely transport goods between multiple floor levels. Featuring a 1000 lb capacity and a minimum overall platform width of 68 inches, this hydraulic vertical reciprocating conveyor (VRC) conforms to ASME B20.1, ANSI, and ISO 9001:2015 standards. With a maximum travel size of 22 ft and a speed of 25 ft/min, this unit comes with a 5-year structural warranty and a 1-year electrical/hydraulic warranty. Made in the USA, this hydraulic lift system is optimal for C, Z, or L loading patterns and can be configured for floor mounting or pit mounting.
Product Specifications
Accessories Accessories
Landing-Lockâ¢, Gates & Enclosures, Controls, Receptacle Charts and Bi-Parting GatesLanding Lockâ¢: Advance lifts has recently developed a Landing Lock⢠for our BFL mezzanine access scissor lift systems. We have a patent pending on the design and the name is trade mark protected. The design consists of two (2) locking pins mounted on the lift platform that are automatically engaged into two (2) supports that are integrated into the lift enclosure system to firmly hold the platform at the upper elevation. Sway and deflection are eliminated during loading/unloading operations. This device can be used to secure a platform at any grade level such as mezzanine floors, building floors or machine interfaces where loads are transferred from one surface to another surface.Gates and Enclosures: We are now manufacturing our own gates and enclosures. By moving the production of the gates and enclosures in house we have shortened our drawing and delivery times. Besides the quicker delivery times, this has allowed us to incorporate some design changes that will improve the fit and finish and make installation easier. The most noticeable change will be the incorporation of leveling feet. Besides making it very easy to deal with un-level floors, they also make it easier to adjust for small surprises like mezzanine lag bolts.All enclosures are custom designs. The main components are universal, but each local authority may tweak the codes to suit their tastes, so it is our job to provide a wide array of options to make it easier to comply with local needs.Our engineers and service people listen carefully to installers to be sure we adopt all the labor saving ideas that we hear about to make installations as quick and trouble free as possible.Features and BenefitsOur designs comply with all applicable ASME & ANSI standards Panel inserts are flattened expanded metal for excellent visibility Panel perimeters are angle iron with external access to mounting slots (Advance supplies 1/4" flanged nuts and flanged bolts for 5/16" slots) Two adjustable feet for each bottom panel for easy leveling Electro mechanical gate interlocks are NEMA 4 rated All metal components are fully primed & baked enamel finishes.
Additional Information Additional Information
Enclosures are quoted separately.For small package liftsFor Rider Lift applicationsIn addition to our hydraulic lift systems, we also offer Mechanical VRC Lifts.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits
All of the controllers are assembled in our UL listed panel shopThese units conform to ASME B20.1These units also conform to VRC Guidelines - as referenced in ASME B20.1Hydraulic mezzanine lifts have a locking system in case of hydraulic failureThese hydraulic vertical lifts are fully primed and have a baked enamel finishThe cylinders in hydraulic units are machine grade with return lines
Specifications Capacity
1000 lb
Specifications Electricalhydraulic Warranty
1 Years
Specifications Industry Standards
American National Standards Institute (ANSI) | American Society of Mechanical Engineers (ASME)International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Lowered Height
2.25 in
Specifications Maximum Platform Size
96 x 96 in
Specifications Maximum Travel Size
22 ft
Specifications Minimum Overall Platform Depth
48 in
Specifications Minimum Overall Platform Width
68 in
Specifications Minimum Platform Size
48 x 48 in
Specifications Motor Power
5 hp
Specifications Number Of Cylinders
2
Specifications Overall Travel Height
105+ in
Specifications Speed
25 ft/min
Specifications Structural Warranty
5 Years
Specifications Type
Straddle Mast Hydraulic
