Advance Lifts 200lb Mezzanine VRC Package Lift
Advance Lifts 200lb Mezzanine VRC Package Lift
SKU:MEZ-534eb2
Enhanced Advance Lifts 200lb Mezzanine VRC Package Lift with ANSI, ASME & UL compliance. Ideal for mezzanine access.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Advance Lifts 200lb Mezzanine VRC Package Lift
$2,899.99
Quantity: 1
Claim Your Seller Account
Advance Lifts 200lb Mezzanine VRC Package Lift
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

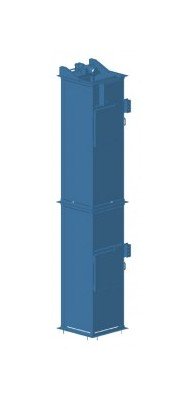

The Advance Lifts 200lb Mezzanine VRC Package Lift is a robust four-post construction designed for automated operations. Fully assembled and customizable, this lift features a 1/2 hp motor, 24x24 to 36x36 inch platform sizes, and various safety mechanisms like load retention bars and power drive units. Compliant with ANSI, ASME, ISO 9001:2015, and UL standards, it ensures reliable performance with a 5-year structural warranty. With features like the Landing Lock™ for secured elevation and enhanced gate and enclosure designs for quick installations, this package lift is ideal for mezzanine access and institutional needs.
Product Specifications
Accessories Accessories
Landing-Lockâ¢, Gates & Enclosures, Controls, Receptacle Charts and Bi-Parting GatesLanding Lockâ¢: Advance lifts has recently developed a Landing Lock⢠for our BFL mezzanine access scissor lift systems. We have a patent pending on the design and the name is trade mark protected. The design consists of two (2) locking pins mounted on the lift platform that are automatically engaged into two (2) supports that are integrated into the lift enclosure system to firmly hold the platform at the upper elevation. Sway and deflection are eliminated during loading/unloading operations. This device can be used to secure a platform at any grade level such as mezzanine floors, building floors or machine interfaces where loads are transferred from one surface to another surface.Gates and Enclosures: We are now manufacturing our own gates and enclosures. By moving the production of the gates and enclosures in house we have shortened our drawing and delivery times. Besides the quicker delivery times, this has allowed us to incorporate some design changes that will improve the fit and finish and make installation easier. The most noticeable change will be the incorporation of leveling feet. Besides making it very easy to deal with un-level floors, they also make it easier to adjust for small surprises like mezzanine lag bolts.All enclosures are custom designs. The main components are universal, but each local authority may tweak the codes to suit their tastes, so it is our job to provide a wide array of options to make it easier to comply with local needs.Our engineers and service people listen carefully to installers to be sure we adopt all the labor saving ideas that we hear about to make installations as quick and trouble free as possible.Features and BenefitsOur designs comply with all applicable ASME & ANSI standards Panel inserts are flattened expanded metal for excellent visibility Panel perimeters are angle iron with external access to mounting slots (Advance supplies 1/4" flanged nuts and flanged bolts for 5/16" slots) Two adjustable feet for each bottom panel for easy leveling Electro mechanical gate interlocks are NEMA 4 rated All metal components are fully primed & baked enamel finishes.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits
All of the controllers are assembled in our UL listed panel shopPackage lift units conform to all applicable ANSI and ASME codesMotors are equipped with integral brake locksUnits are equipped with double chainsPackage lift units have flattened expanded enclosures attached at the factoryPlatforms have dual surface guides in all four (4) cornersCall-send-stop buttons mounted at each levelVRC lift platforms are equipped with load retention bars on all four (4) sidesPower drive units mounted in the top of each unit, other configurations are available
Specifications Capacity
200 lb
Specifications Carriage Height
24 in
Specifications Electricalhydraulic Warranty
1 Years
Specifications Industry Standards
American National Standards Institute (ANSI) | American Society of Mechanical Engineers (ASME) | International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Lowered Height
30 in
Specifications Maximum Platform Size
36 x 36 in
Specifications Maximum Travel Size
24 ft
Specifications Minimum Overall Depth
36 in
Specifications Minimum Overall Width
33 in
Specifications Minimum Platform Size
24 x 24 in
Specifications Motor Power
1/2 hp
Specifications Overall Travel Height
80+ in
Specifications Speed
30 ft/min
Specifications Structural Warranty
5 Years
