Advance Lifts BFL-10 10ft Scissor Lift - 6000 lb Capacity
Advance Lifts BFL-10 10ft Scissor Lift - 6000 lb Capacity
SKU:MEZ-7398e7
Experience reliability and durability with the Advance Lifts BFL-10 10ft Scissor Lift - ideal for heavy loads & high-travel applications.
Regular price
$12,499.99
Regular price
Sale price
$12,499.99
Unit price
per
Initiate Order
Advance Lifts BFL-10 10ft Scissor Lift - 6000 lb Capacity
$12,499.99
Quantity: 1
Claim Your Seller Account
Advance Lifts BFL-10 10ft Scissor Lift - 6000 lb Capacity
$12,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

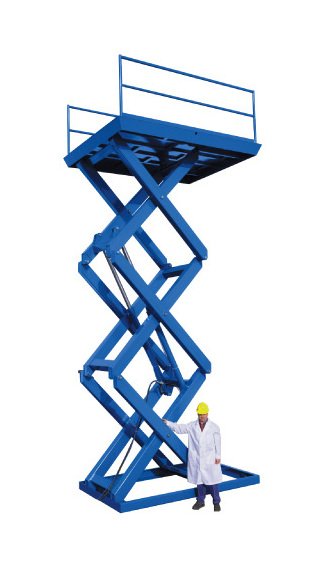

The Advance Lifts BFL-10 10ft Scissor Lift is engineered for high-travel applications requiring large platform sizes. With a robust tubular steel construction, this hydraulic lift can efficiently move multiple pallets or heavy loads to higher mezzanines or floor levels. Equipped with advanced features like the patented Platform Centering Device and UL-listed controllers, this lift meets ANSI, ISO 9001:2015, and UL standards. Experience reliability, durability, and performance with Advance Lifts.
Product Specifications
Accessories Accessories

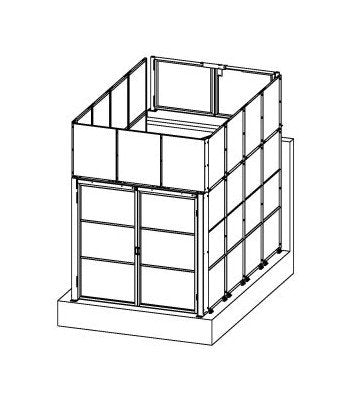

Landing-Lockâ¢, Gates & Enclosures, Controls, Receptacle Charts and Bi-Parting GatesLanding Lockâ¢: Advance lifts has recently developed a Landing Lock⢠for our BFL mezzanine access scissor lift systems. We have a patent pending on the design and the name is trade mark protected. The design consists of two (2) locking pins mounted on the lift platform that are automatically engaged into two (2) supports that are integrated into the lift enclosure system to firmly hold the platform at the upper elevation. Sway and deflection are eliminated during loading/unloading operations. This device can be used to secure a platform at any grade level such as mezzanine floors, building floors or machine interfaces where loads are transferred from one surface to another surface.Gates and Enclosures: We are now manufacturing our own gates and enclosures. By moving the production of the gates and enclosures in house we have shortened our drawing and delivery times. Besides the quicker delivery times, this has allowed us to incorporate some design changes that will improve the fit and finish and make installation easier. The most noticeable change will be the incorporation of leveling feet. Besides making it very easy to deal with un-level floors, they also make it easier to adjust for small surprises like mezzanine lag bolts.All enclosures are custom designs. The main components are universal, but each local authority may tweak the codes to suit their tastes, so it is our job to provide a wide array of options to make it easier to comply with local needs.Our engineers and service people listen carefully to installers to be sure we adopt all the labor saving ideas that we hear about to make installations as quick and trouble free as possible.Features and BenefitsOur designs comply with all applicable ASME & ANSI standards Panel inserts are flattened expanded metal for excellent visibility Panel perimeters are angle iron with external access to mounting slots (Advance supplies 1/4" flanged nuts and flanged bolts for 5/16" slots) Two adjustable feet for each bottom panel for easy leveling Electro mechanical gate interlocks are NEMA 4 rated All metal components are fully primed & baked enamel finishes.
Additional Information Additional Information
Advance has the most standard units of multistage scissors lifts (MSL's & BFL's) in the industry. We also build custom design units frequently. The attached photos are of a unit we built this month. Specifications are platform 7' x 13', travel of 23' and 12,000# capacity. If your customer has an application for a tall travel lift, be sure to talk to us. We have a lot of experience with big mechanical lift tables.
Electrical Electrical

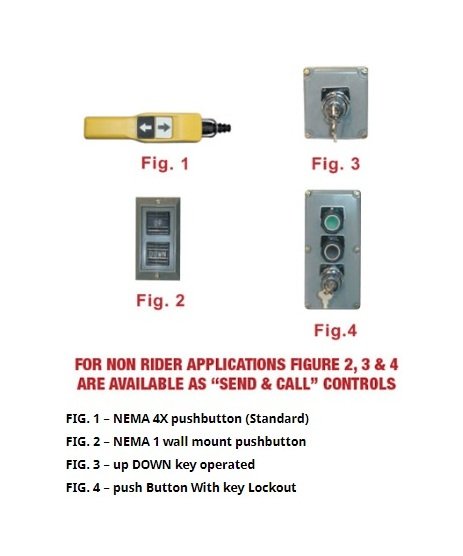

Wall mounted push-button.Up, down, and stop circuits.Limit switches.
Mechanical Mechanical

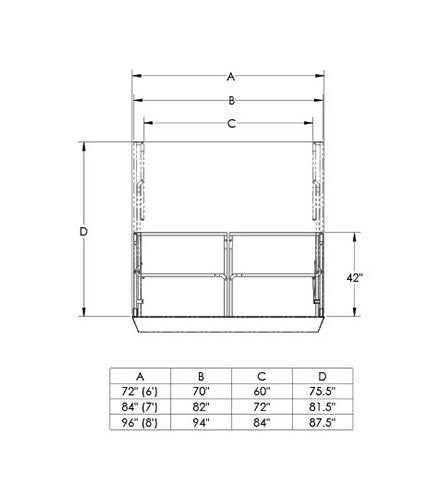

Hand railsEnclosures
Note Note
Consult the factory for higher speeds with larger power units, custom travels, custom platform sizes and capacities.Made in USA.
Special Features And Benefits Special Features And Benefits

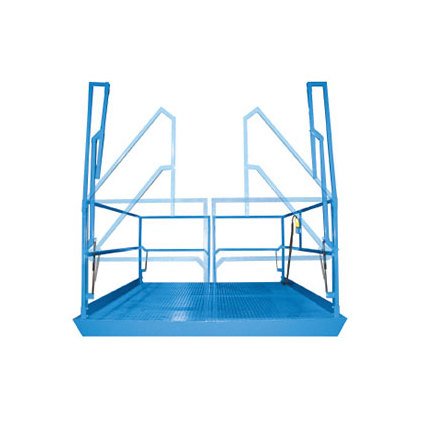

These units are equipped with the patented "Platform Centering Device".All of the controllers are assembled in our UL listed panel shop.These units are fully primed and finished with a baked enamel finish.The cylinders are machine grade with return lines.The oil reservoirs are mild steel for long life.These units conform to all applicable ANSI codes.All pressure hoses are double wire braid with JIC fittings.Two bi parting electrically interlocked folding gates are optional.A manual lowering valve is standard.
Specifications Base Frame Size
66 x 90 in
Specifications Capacity
6000 lb
Specifications Industry Standards
American National Standards Institute (ANSI) | International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Lowered Height
1 ft 5-1/2 in.
Specifications Maximum End Load Capacity
3150 lb
Specifications Maximum Optional Platform Size
8 x 10 ft
Specifications Maximum Side Load Capacity
1825 lb
Specifications Minimum Standard Platform Size
6 x 8 ft
Specifications Motor Power
5 hp
Specifications Parts And Labor Warranty
1 Years
Specifications Raised Height
11 ft 5-1/2 in.
Specifications Series
BFL
Specifications Shipping Weight
2653 lb
Specifications Speed
45 seconds
Specifications Structural Warranty
10 Years
Specifications Travel Size
10 ft
