Advance Lifts DP 40" Standard Container Dumper
Advance Lifts DP 40" Standard Container Dumper
SKU:CON-740c24
Compact and efficient 40" Standard Container Dumper by Advance Lifts, featuring adjustable bars, safety controls, and durable construction.
Regular price
$5,499.99
Regular price
Sale price
$5,499.99
Unit price
per
Initiate Order
Advance Lifts DP 40" Standard Container Dumper
$5,499.99
Quantity: 1
Claim Your Seller Account
Advance Lifts DP 40" Standard Container Dumper
$5,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

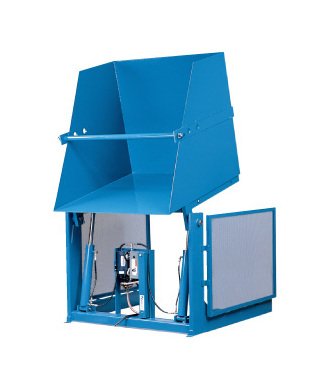

The Advance Lifts DP Series 40 Inch Standard Container Dumper is a compact hydraulic dumper designed for efficiency and versatility. With a carriage width of 40 inches, an arc height of 120 inches, and a speed of 25 seconds, this dumper offers precise and reliable dumping capabilities. It is equipped with adjustable retaining bars, machine-grade single-acting cylinders, and Underwriter Laboratory listed controllers for safety. Hard chrome plated shafts, axles, and pins ensure durability, while lifetime lubricated bearings and baked enamel finish make it a low-maintenance solution. Made in the USA, this dumper is backed by a 10-year warranty for peace of mind.
Product Specifications
Accessories Accessories
Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits

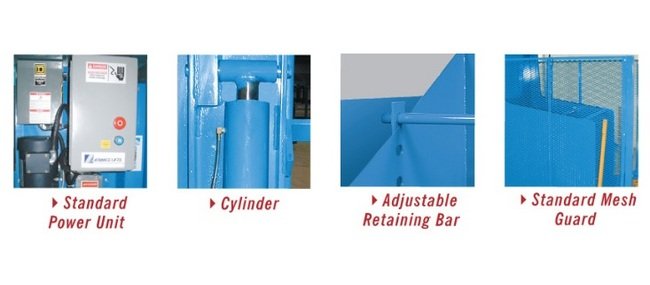

Designed for a minimum size footprint.Adjustable retaining bar.The cylinders are machine grade single acting style.All of the controllers are Underwriter Laboratory listed assemblies.All shafts, axles and pins are hard chrome plated.All bearings are lifetime lubricated.These hydraulic dumpers are fully primed and finished with baked enamel.

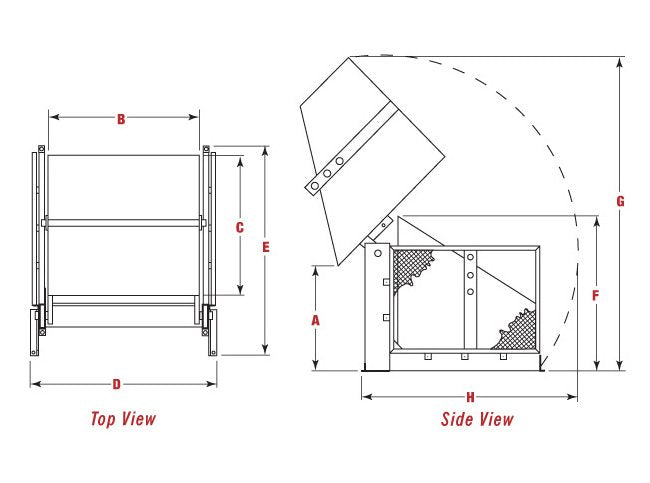

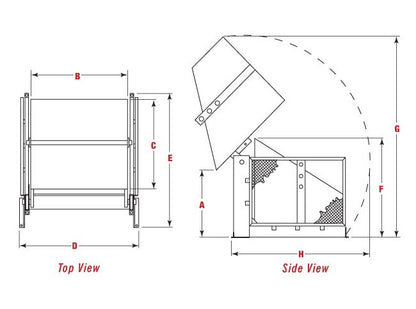

Specifications Approximate Weight
1020 lb
Specifications Arc Height G
120 in
Specifications Capacity
2000 lb
Specifications Carriage Height F
65 in
Specifications Carriage Length C
36 in
Specifications Carriage Width B
40 in
Specifications Dump Height A
48 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
2 hp
Specifications Overall Length E
58 in
Specifications Overall Width D
53 in
Specifications Series
DP
Specifications Speed
25 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
79 in
