Advance Lifts DP Series 40" Container Dumper
Advance Lifts DP Series 40" Container Dumper
SKU:CON-9a5e79
Experience efficiency with the Advance Lifts DP Series 40" Container Dumper, designed for compact spaces and diverse material handling needs.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Advance Lifts DP Series 40" Container Dumper
$5,899.99
Quantity: 1
Claim Your Seller Account
Advance Lifts DP Series 40" Container Dumper
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

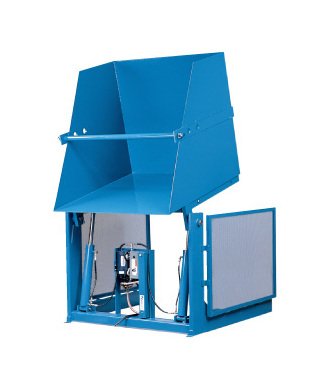

The Advance Lifts DP Series 40 Inch Standard Container Dumper offers a compact design with superior performance. With a 6000 lb capacity and 125-degree tilt, this dumper is versatile for handling various materials like meat, grain, or plastic pellets. Its adjustable retaining bar, machine-grade single acting cylinders, and UL-listed controllers ensure safe and efficient operations. Ideal for institutional and industrial use, this dumper is fully compliant with ISO 9001:2015 and UL standards, making it a reliable choice for government buyers.
Product Specifications
Accessories Accessories
Other Options Not ShownStainless steel carriage.Epoxy paint finishes.Custom controls such as footswitches or key. Lockout pushbuttons.Continuous running remote power units.Explosion proof remote power units.Air operated power units.Custom retaining bars.Shock absorbers for full down position.
Note Note
Made in USA.
Special Features And Benefits Special Features And Benefits

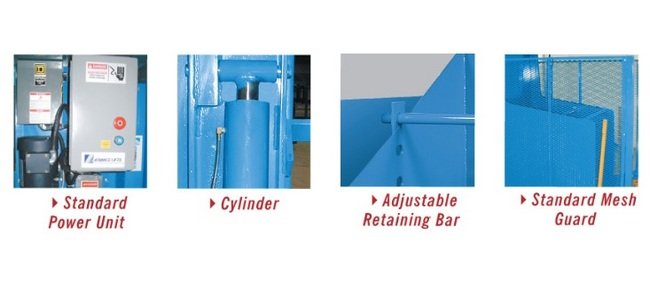

Designed for a minimum size footprint.Adjustable retaining bar.The cylinders are machine grade single acting style.All of the controllers are Underwriter Laboratory listed assemblies.All shafts, axles and pins are hard chrome plated.All bearings are lifetime lubricated.These hydraulic dumpers are fully primed and finished with baked enamel.

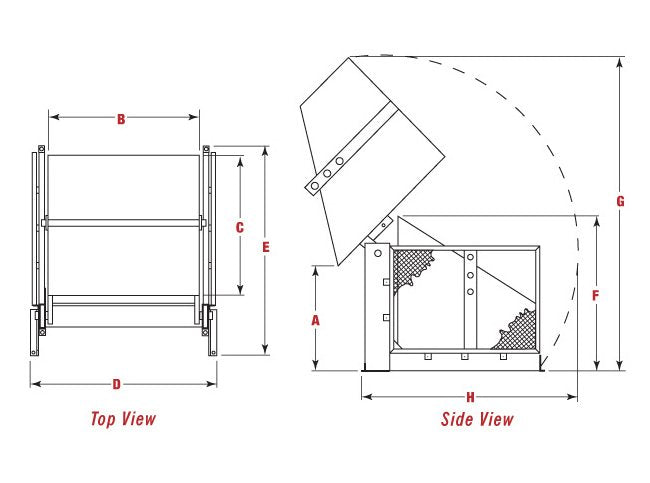

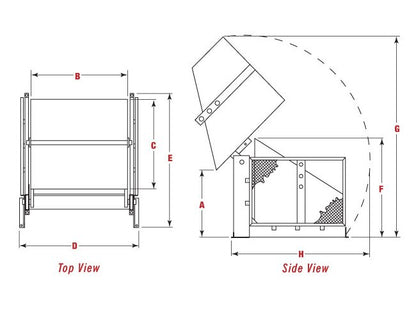

Specifications Approximate Weight
1070 lb
Specifications Arc Height G
99 in
Specifications Capacity
6000 lb
Specifications Carriage Height F
53 in
Specifications Carriage Length C
36 in
Specifications Carriage Width B
40 in
Specifications Dump Height A
36 in
Specifications Industry Standards
International Organization for Standardization (ISO 9001:2015) Certified | Underwriters Laboratories (UL)
Specifications Motor Power
2 hp
Specifications Overall Length E
58 in
Specifications Overall Width D
53 in
Specifications Series
DP
Specifications Speed
37 seconds
Specifications Warranty
10 Years | 250000 cycles
Specifications Width H
70 in
